The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment.
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Bundled software | Intelligent Power Protector |
| Certification | CE, CB, TÜV |
| Colour of product | Black |
| Compatible operating systems | Windows (x86/x64) 7 / 2008 / Vista / 2003 / XP\nWindows (x86) 2000\nLinux (x86/x64)\nDebian GNU Linux: Lenny\nSUSE/Novell: SLES 11, OpenSUSE 11.2,\nRedhat Enterprise Linux: RHEL 5.4, Fedora core 12\nUbuntu: 10.04\nESX 4; ESXi 4, 4.10\nMicrosoft Hyper-V, H |
| Depth | 497 mm |
| Display | LCD |
| Fan | Yes |
| Form factor | Rackmount |
| Height | 130.7 mm |
| Hot-swap battery | Yes |
| Input connection type | IEC |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| LED indicators | Yes |
| Mac compatibility | No |
| Noise level | 50 dB |
| Nominal output voltage | 200-240 V |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 2700 W |
| Output power capacity (VA) | 3000 VA |
| Power factor | 0.9 |
| Power plug | C20 coupler |
| Power supply input frequency | 40/70 Hz |
| Rack capacity | 2U |
| Rack mounting | Yes |
| RS-232 ports | 1 |
| Safety | IEC/EN 62040-1-1, IEC/EN 62040-2 (EMC), IEC/EN 62040-3 |
| Source data-sheet | Icecat.biz |
| Typical backup time at half load | 14 min |
| USB 2.0 ports quantity | 1 |
| Weight | 44260 g |
| Width | 441 mm |
Specific References
- EAN13
- 0743172035950

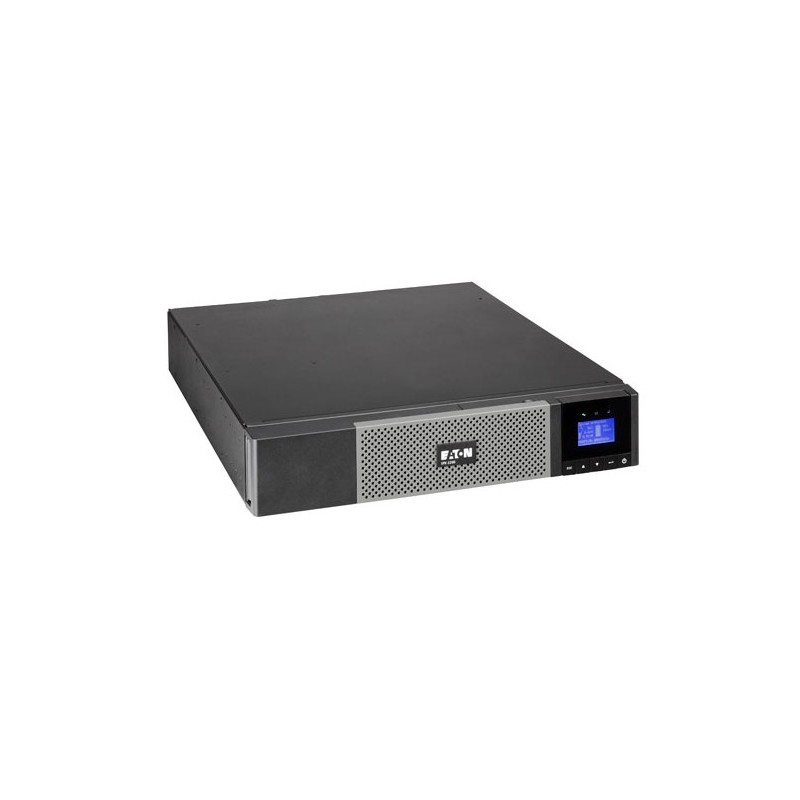

Eaton 5PX 3000VA (2U) Netpack
5PX 3000VA Line-Interactive High Frequency Netpack
£1,832.04
Tax excluded
5PX 3000VA Line-Interactive High Frequency Netpack
