Images are for illustrative purposes only.

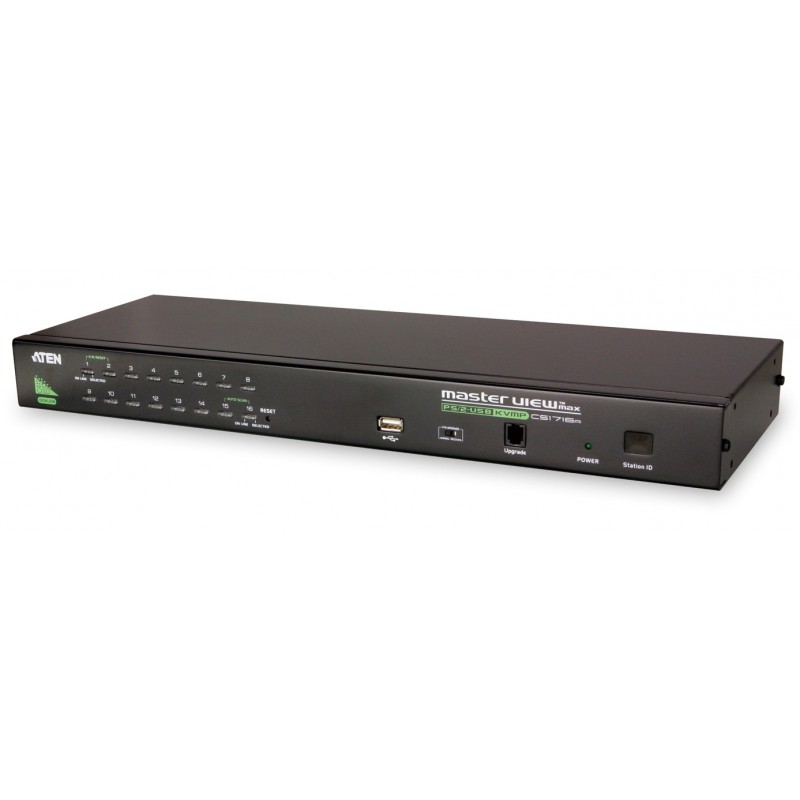

Aten CS1716A

16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port

More details

CS1716A

In Stock

Features - One USB-PS/2 console controls up to 16 computers - Daisy-chain up to 31 additional units - control up to 512 ... Read More

Need a custom made cabinet? we have it covered

New product

£341.67

£284.73 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features



- One USB-PS/2 console controls up to 16 computers

- Daisy-chain up to 31 additional units - control up to 512 computers from a single console

- Front accessible USB port allows each computer to access USB peripherals*

- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

- Multiplatform support - Windows, Linux, Mac and Sun

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Supports USB keyboards for PC, Mac and Sun

- Auto PS/2 and USB interface detection

- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

- Superior video quality - up to 2048 x 1536; DDC2B

- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position

- Port names automatically reconfigured when station sequence is changed

- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each

- Auto Scan feature for monitoring user-selected computers

- Broadcast Mode - operation simultaneously performed on all selected computers... etc

- Hot pluggable - add or remove computers without having to power down the switch

- Buzzer on/off via hotkey and OSD

- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable

- Rack mountable in 19" system rack (1U)



* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.



Package Contents



- 1x KVM Switch with Standard Rack Mounting Kit

- 1x 2L-5202P PS/2 KVM Cable

- 1x 2L-5202U USB KVM Cable

- 1x LIN5-27X6-U21G Console Cable

- 1x Firmware Upgrade Cable

- 1x Foot Pad Set(4 PCS)

- 1x 0AD6-1605-24EG Power Adapter

- 1x User Instructions
Audio connectionsNo
Built-in displayNo
Colour of productBlack
Connectivity technologyWired
DC-in jackYes
Depth160 mm
Ethernet LANNo
Ethernet LAN connectionNo
Height44 mm
I/O ports1 x RJ-11
Keyboard port typeNo
LED indicatorsPower
ManualYes
MaterialMetal
Maximum resolution2048 x 1536 pixels
Mouse port typeNo
Number of computers controlled16
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Power consumption (typical)6.6 W
Power requirementsDC 5.3 V
Rack mounting1u
RoHS complianceYes
Scan interval255 s
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
USB 2.0 ports quantity1
Video port typeVGA
Weight2850 g
Width433 mm
EAN4710423775329
ManufacturerAten
