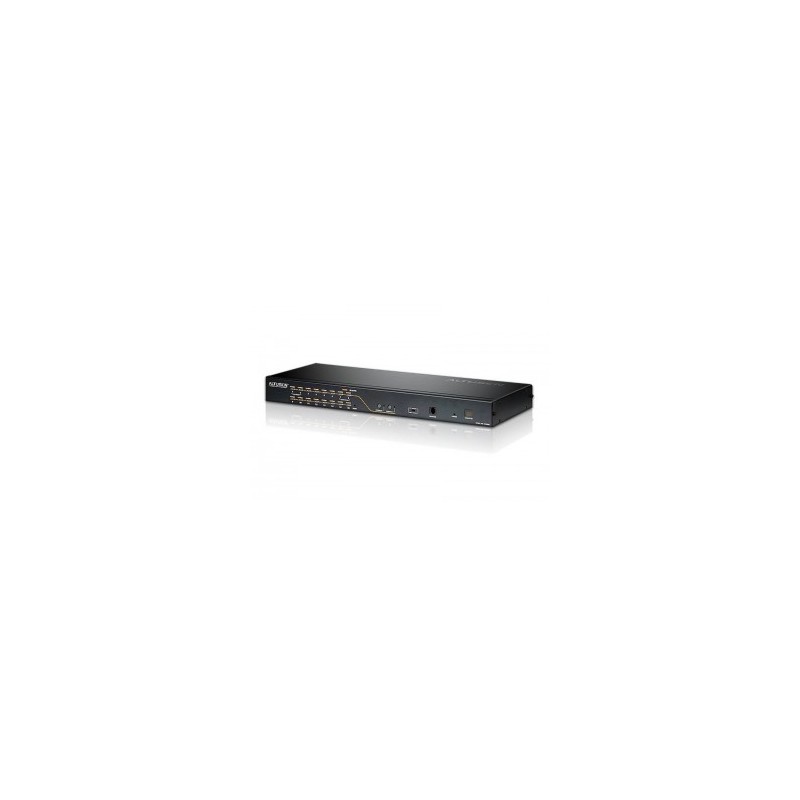

Aten KH2516A

2-console 16-port Cat 5 High-Density KVM Switch

More details


Out of Stock

Features - Two KVM consoles independently and simultaneously control up to 16 directly connected computers - By daisy ... Read More

Browse our range of high quality PDUs

New product


£0.00 tax excl.

  • More info

  • Details


- Two KVM consoles independently and simultaneously control up to 16 directly connected computers

- By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console

- Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB)

- supported on both the KVM console and computer sides

- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series

- Configure port access rights for users on a port - by - port basis

- Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes

- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)

- Multiplatform support – PC, Mac, Sun, and serial

- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts

- Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation

- Auto Scan mode enables continuous monitoring of user-selected computers

- Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

- Adapter ID

- Firmware Upgradeable

Package Contents

- 1x KH2516A Cat 5 High-Density KVM Switch

- 1x Firmware Upgrade Cable

- 1x 1ADP-0004-002G Power Cord

- 1x Rack Mount Kit

- 1x Foot Pad Set (4 pcs.)

- 1x User Instructions
Colour of productBlack
Connectivity technologyWired
Depth437.2 mm
Dimensions (WxDxH)163.6 x 437.2 x 44 mm
Height44 mm
LED indicatorsYes
Maximum resolution1600 x 1200 pixels
Number of computers controlled16
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Ports quantity16
Power consumption (typical)9 W
PS/2 ports quantity4
Quick installation guideYes
RoHS complianceYes
Scan interval255 s
Storage temperature (T-T)-20 - 60 °C
USB 2.0 ports quantity4
VGA (D-Sub) ports quantity2
Weight2850 g
Width163.6 mm
