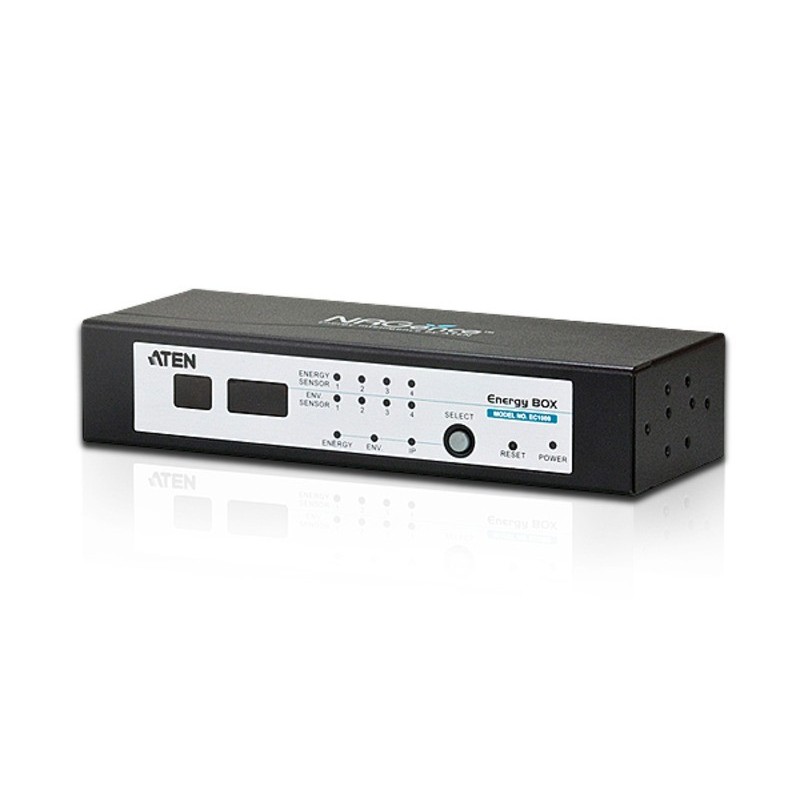

Aten EC1000 Energy Box

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management.

More details


Out of Stock

Operation - Space saving 1U rack mounting with front and rear mounting - 4 RJ-45 Energy Sensor Ports to monitor four ... Read More

Need a custom made cabinet? we have it covered

New product


£0.00 tax excl.

  • More info

  • Details


- Space saving 1U rack mounting with front and rear mounting

- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)

- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*

- Maximum Amperage Monitor 32A@100V~240V (Energy Box)

- 3 digit 7 segment front panel LED displays current/sensor/IP address information

- Threshold monitoring for:

- 1.Current

- 2.Temperature

- 3.Humidity

- 4.Differential pressure

- Threshold alerting through:

- 1. Local: audible alarm and LED lights

- 2. Remote: SMTP/SNMP trap/Syslog


- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box

- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management

- Management through eco Sensors Energy Management Software or 3r party SNMP manager

- Supports name assignment for individual Energy PDUs

- Event Logging – 128 line event log

- Syslog support

- F/W upgradable

Remote Access

- Remote management via TCP/IP using built in 10/100Mbps Ethernet port

- Management via built in browser based GUI

- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping

- Supports SNMP Manager V1, V2, V3


- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL

- RADIUS authorization and authentication

Package Contents

- 1x EC1000 Energy Box

- 1x 0AD8-8605-24EG Power Adapter

- 1x Mounting Kit

- 4x RJ-45 Cables

- 1x CD ROM (Manual, eco Sensors Software)

- 1x User Instructions
Dimensions (WxDxH)200 x 75.9 x 42 mm
Ethernet LAN (RJ-45) ports4
Input frequency50/60 Hz
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 80 %
Storage temperature (T-T)-20 - 60 °C
Weight590 g
