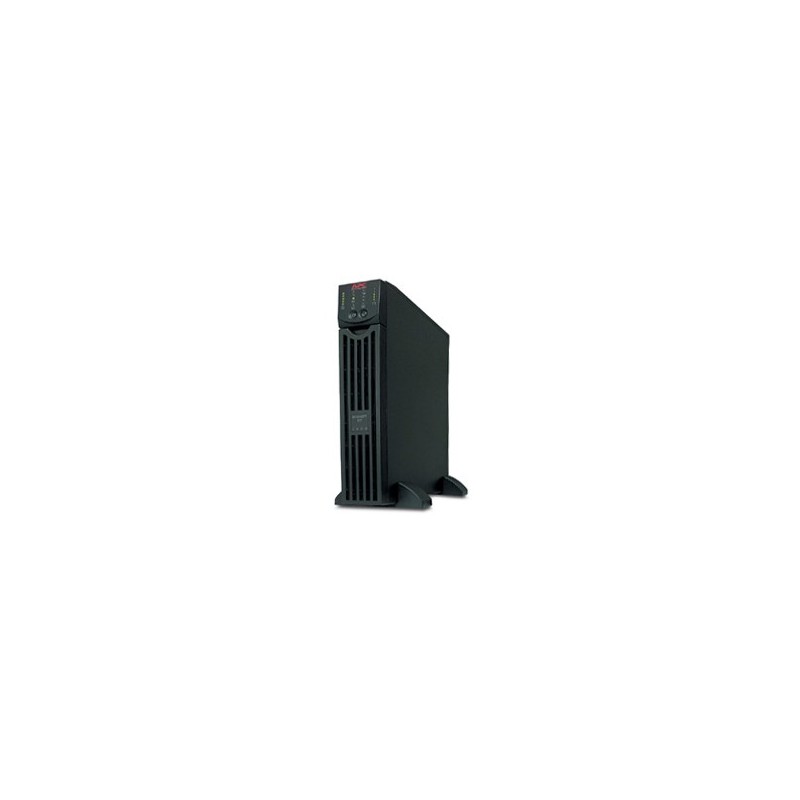

APC SURT1000XLI uninterruptible power supply (UPS)
  • APC SURT1000XLI uninterruptible power supply (UPS)
  • APC SURT1000XLI uninterruptible power supply (UPS)

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS® is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications.


Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Cold-start capable: Provides temporary battery power when the utility power is out.

Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.


Network manageable: Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA).

SmartSlot: Customize UPS capabilities with management cards.

Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators: Enables quick understanding and response to visual indicators showing UPS status.

Serial Connectivity: Provides management of the UPS via a serial port.

Disconnected battery notification: Warns when a battery is not available to provide backup power.

InfraStruXure Manager compatible: Enables centralized management via the APC InfraStruXure® Manager.


User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers: Enables quick recovery from UPS overload events.


Adjustable voltage-transfer points: Saves battery power and helps extend battery life.

Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.


Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
AC outlet typesC13 coupler
AC outlets quantity6 AC outlet(s)
Battery capacity328 VAh
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Bundled software- PowerChute Business Edition 25 Node upgrade for versions 6.x to 6.1.1 - PowerChute Business Edition Getting Started Guide - PowerChute Business Edition v6.2.2 Agent Linux - PowerChute Business Edition v6.2.2 Netware 5.1/6.0 - PowerChute Business Edition
Cables includedRS-232
CertificationC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, REACH, PEP, EOLI
Colour of productBlack
Crest factor3:1
Depth483 mm
Dimensions (WxDxH)431.8 x 482.6 x 85.1 mm
Efficiency89.1 %
Form factorRackmount/Tower
Height432 mm
Hot-swap batteryYes
I/O portsDB-9 SmartSlot
Input connection typeIEC-320 C14
Input operation voltage (max)280 V
Input operation voltage (min)100 V
LED indicatorsYes
Noise level50 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(6)IEC 320 C13 (2)IEC
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power700 W
Output power capacity (VA)1000 VA
Package height286 mm
Package weight27800 g
Package width630 mm
Power supply input frequency50/60 Hz
Quantity per pallet6 pc(s)
Rack capacity2U
Replacement battery cartridgeRBC31
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-20 - 50 °C
Storage temperature range (T-T)-20 - 50 °C
Surge energy rating420 J
Typical backup time at full load13.8 min
Typical backup time at half load32 min
Weight23000 g
Width85 mm
