Automatically cuts power to idle equipment to conserve electricity.
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Battery capacity | 66 VAh |
| Battery recharge time | 12 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Bundled software | PowerChute Personal Edition |
| Cable length | 1.83 m |
| Cables included | USB cable |
| Certification | A-tick, C-tick, CE, GOST, GS Mark, REACH, PEP, EOLI |
| Colour of product | Black |
| Depth | 310 mm |
| Dimensions (WxDxH) | 91 x 310 x 192 mm |
| Display | LCD |
| Efficiency | 98.2 % |
| Height | 190 mm |
| Hot-swap battery | Yes |
| Input operation voltage (max) | 290 V |
| Input operation voltage (min) | 155 V |
| Manual | Yes |
| Maximum current | 6 A |
| Noise level | 45 dB |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | IEC 320 C13 (x3)/IEC 320 C13 (x3) |
| Output power | 330 W |
| Output power capacity (VA) | 550 VA |
| Package height | 252 mm |
| Package weight | 7710 g |
| Package width | 138 mm |
| Power supply input frequency | 50/60 Hz |
| Quantity per pallet | 48 pc(s) |
| Replacement battery cartridge | APCRBC110 |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage temperature range (T-T) | -15 - 45 °C |
| Surge energy rating | 420 J |
| Surge protection features | Network |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 11.8 min |
| USB port | Yes |
| Waveform | Sine |
| Weight | 6530 g |
| Width | 91 mm |
Specific References
- EAN13
- 0731304266884

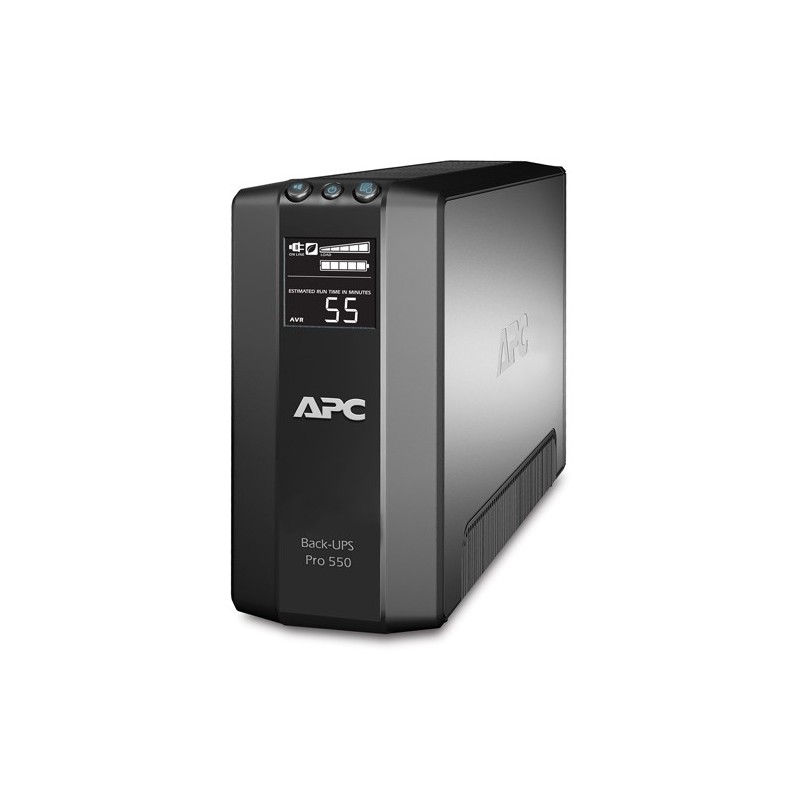

APC Back-UPS Pro BR550GI
Back UPS RS LCD 550 Master Control
£158.66
£132.22 Ex. VAT
Back UPS RS LCD 550 Master Control
