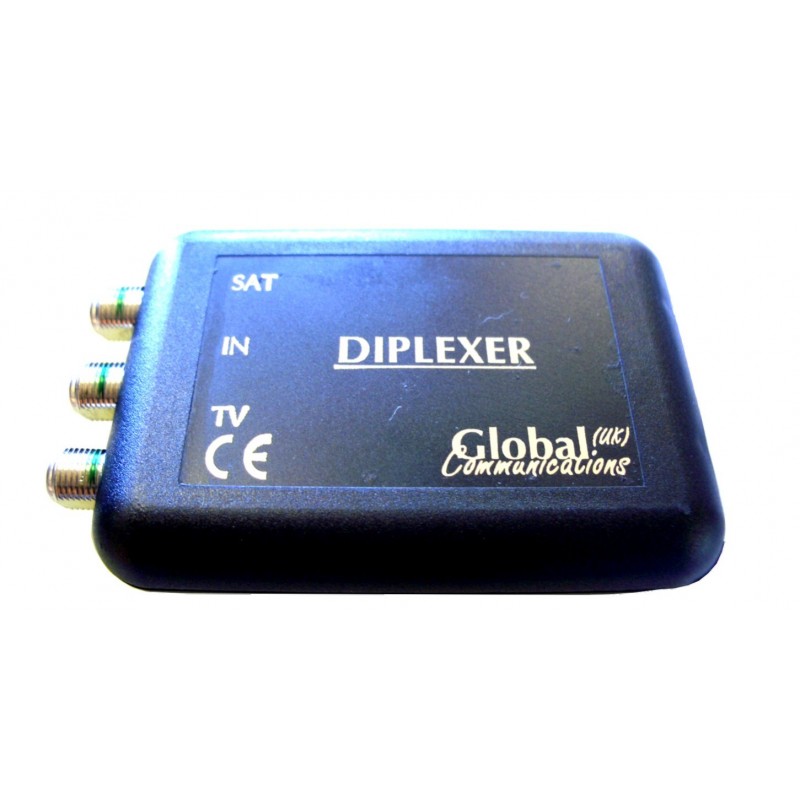

tvLINK Dip1 Splitter

• Allows a satellite signal to be added to an existing UHF system.

• High isolation between satellite and TV ports.

• Low insertion loss

The Diplexers are designed to either combine or separate a terrestrial signal with a satellite signal to allow both signals to use the same cable.

One possible application is using diplexers at each end of an existing satellite cable. This is to carry the UHF signal to an upstairs room to allow a tvLINK® to be installed (see system diagram).
