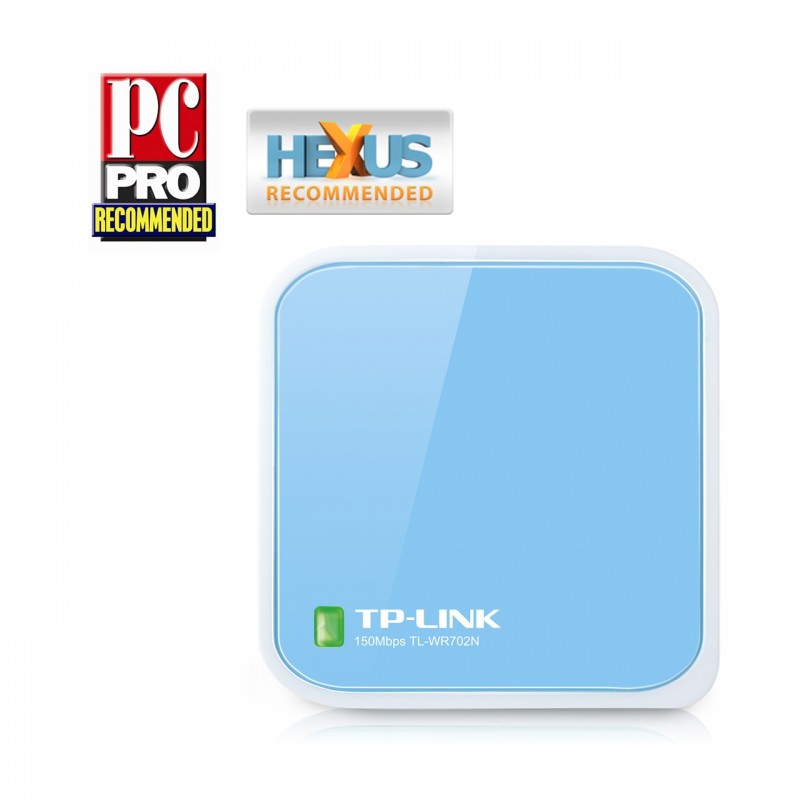

150Mbps Wireless N Nano Router

More details


In Stock

What is the TL-WR702N? The TL-WR702N is designed for use with tablets, smart phones, handheld game consoles and other ... Read More

Need a custom made cabinet? we have it covered

New product


£22.35 tax excl.

  • More info

  • Details

  • Spec Sheet

What is the TL-WR702N?
The TL-WR702N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The device, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the internet and share the connection around an average sized room at 150Mbps.The device’s tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

Portable and Compact—Ideal for Home and Travel Use
TL-WR702N is the smallest wireless router in the world and very easy to use. A traveler need simply plug a hotel room’s WAN cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.

Flexible Power Supply—Easy to Take on the Road
TL-WR702N has a Micro USB port and can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR702N into their computer’s USB port and share their Wi-Fi connection with family and friends.

Multiple Operating Modes
TL-WR702N supports AP, Router, Bridge, Client and Repeater modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.

Advanced Security
TL-WR702N provides WPA-PSK/WPA2-PSK encryptions, which can effectively and efficiently protect the wireless network. What makes the nano router more powerful is its Pre-Encryption function which sets the initial SSID and Password for users to protect their wireless security.

Cables includedLAN (RJ-45), USB
Cabling technology10/100Base-T(X)
CertificationCE, FCC, RoHS
Colour of productBlue, White
Compatible operating systemsWindows 98SE/NT/2000/XP/Vista/7 Mac OS NetWare, UNIX Linux
Connectivity technologyWireless
Dimensions (WxDxH)57 x 57 x 18 mm
DSL connection typeNo
Ethernet LAN (RJ-45) ports quantity1
Ethernet LAN connectionYes
Ethernet LAN data transfer rates10, 100 Mbit/s
Firewall securityDoS, SPI, NAT
Frequency range2.4 - 2.4835 GHz
Networking featuresFast Ethernet
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Operating relative humidity range10 - 90 %
Operating temperature range (T-T)0 - 40 °C
Receiver sensitivity135M:-70dBm@10%PER 65M:-73dBm@10%PER 54M:-76dBm@10%PER
Security algorithms supported128-bit WEP, 152-bit WEP, 64-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage relative humidity range5 - 90 %
Storage temperature range (T-T)-40 - 70 °C
Supported network protocolsPPTP, L2TP, PPPoE, TCP/IP, DHCP, ICMP, NAT, SNTP
USB port1
WAN connectionRJ-45
Wireless LAN connectionYes
Wireless LAN type802.11b, 802.11g, 802.11n
WLAN data transfer rates supported1, 2, 6, 9, 11, 12, 18, 24, 36, 48, 54, 150 Mbit/s
