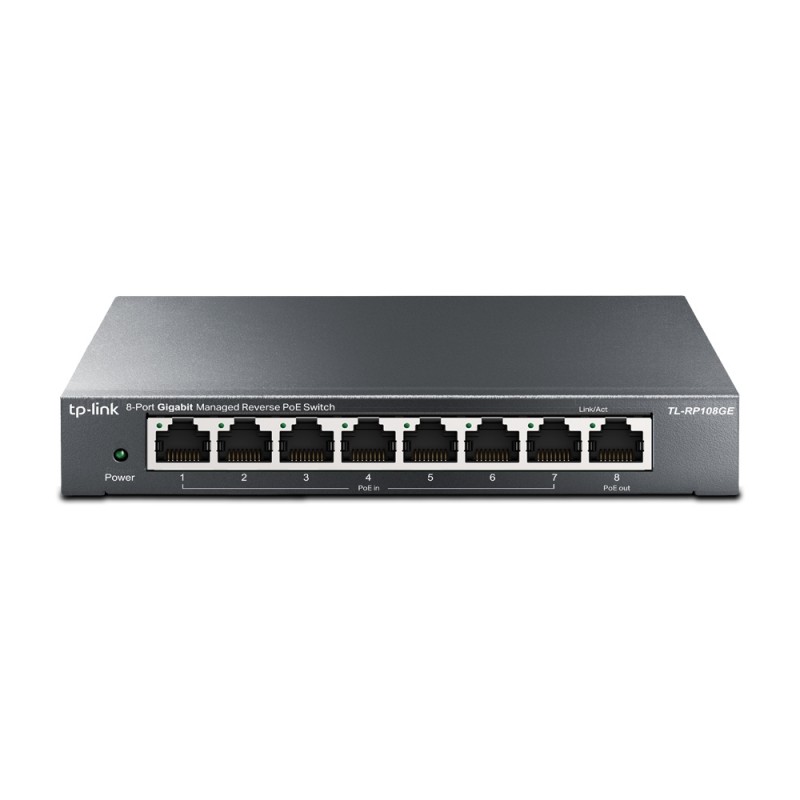

What This Product Does The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | FCC, CE, RoHS |
| Depth | 99.1 mm |
| Full duplex | Y |
| Height | 25 mm |
| Input current | 1 A |
| LED indicators | Y |
| MAC address table | 4000 entries |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3p,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Power over Ethernet (PoE) | Y |
| Quality of Service (QoS) support | Y |
| Reset button | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switching capacity | 16 Gbit/s |
| Width | 158 mm |
| Half duplex | Y |
| Power over Ethernet (PoE) type supported | Passive PoE |
