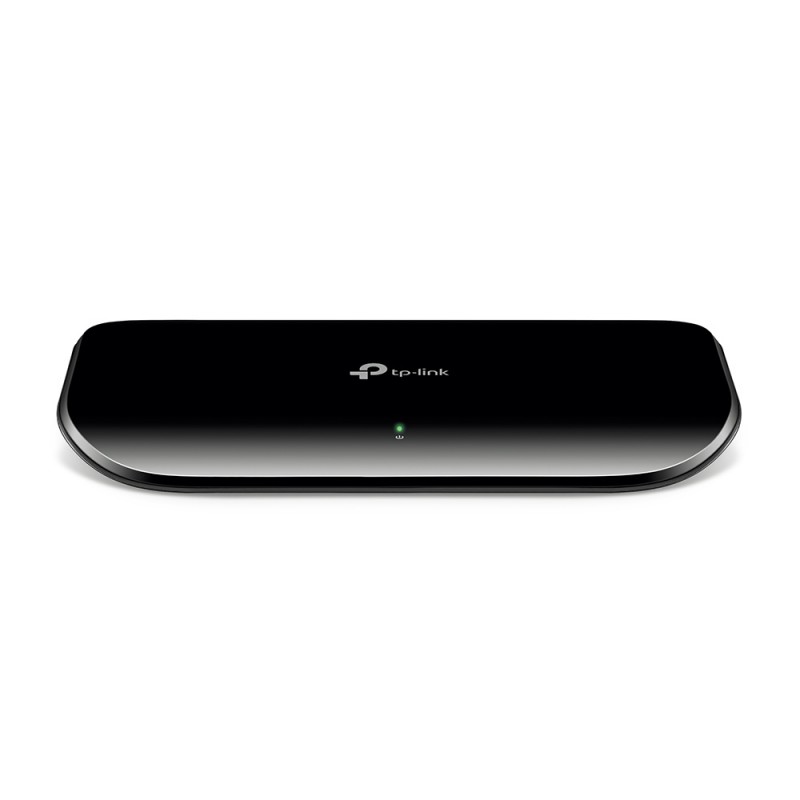

TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
  • TP-LINK 8-Port Gigabit Desktop Network Switch
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.



Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.



Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.



Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.



Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedAC
CertificationFCC, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth89.8 mm
Ethernet LAN data rates10,100,480,800,1000 Mbit/s
Flow control supportY
Full duplexY
Gigabit Ethernet (copper) ports quantity8
Heat dissipation15.8 BTU/h
Height25.5 mm
MAC address filteringY
MAC address table4000 entries
ManualY
Networking standardsIEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package height97 mm
Package weight370 g
Package width220 mm
Ports quantity8
Power over Ethernet (PoE)N
Quick start guideY
Rack mountingN
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity16 Gbit/s
Width180 mm
FanlessY
