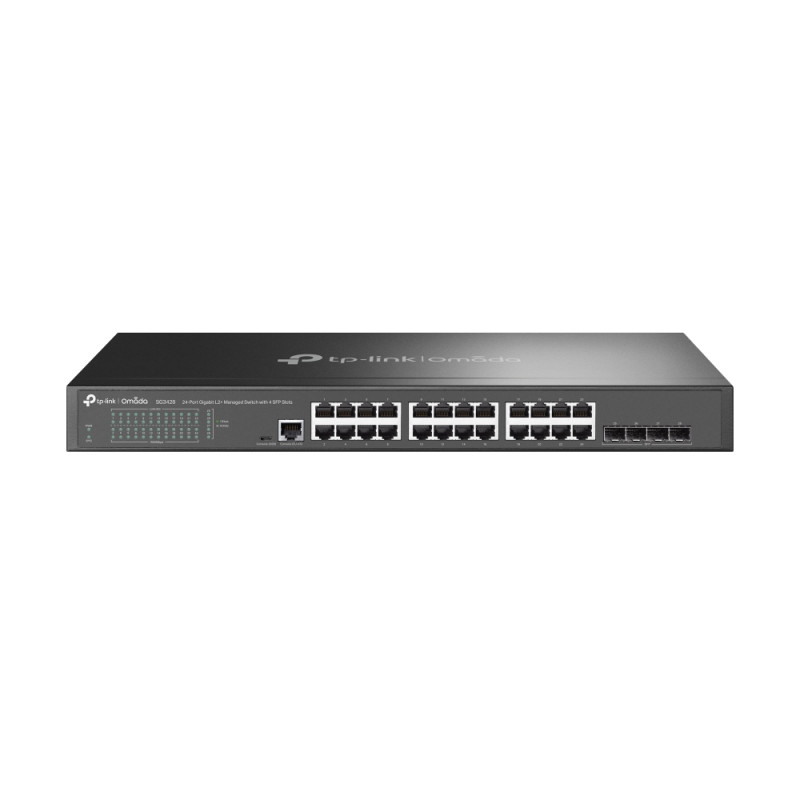

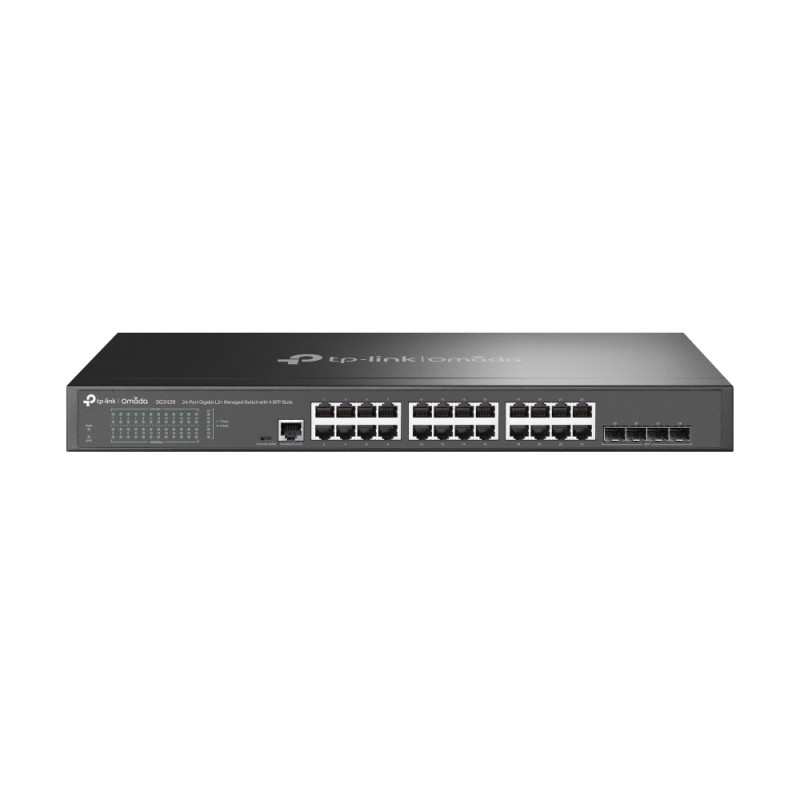

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

More Info
Details
Spec Sheet

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	LAN (RJ-45)
Depth	180 mm
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Y
Form factor	1U
Gigabit Ethernet (copper) ports quantity	24
Heat dissipation	70.3 BTU/h
Height	44 mm
LED indicators	Y
MAC address filtering	Y
MAC address table	16000 entries
Management protocols	SNMPv1/v2c/v3, SNTP
MIB support	Yes
Networking standards	IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
Number of static routes	48
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 45 °C
Packet buffer memory	12 MB
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Y
Quick start guide	Y
Rack mounting	Yes
Spanning tree protocol	Y
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Y
Switch layer	L2/L3
Switch type	Managed
Switching capacity	56 Gbit/s
Web-based management	Y
Width	440 mm
Cloud-managed	Y
IPv4 routes	48
IPv6 routes	48
