10G support | No |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Depth | 330 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flow control support | Y |
Form factor | 1U |
Heat dissipation | 1035.4 BTU/h |
Height | 44 mm |
LED indicators | Y |
MAC address filtering | Y |
MAC address table | 16000 entries |
MIB support | Y |
Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Power over Ethernet (PoE) | Yes |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
Security algorithms | SNMP,SNMPv2,SNMPv3 |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L2/L2+ |
Switch type | Managed |
Switching capacity | 104 Gbit/s |
Web-based management | Y |
Width | 440 mm |
Cloud-managed | Y |

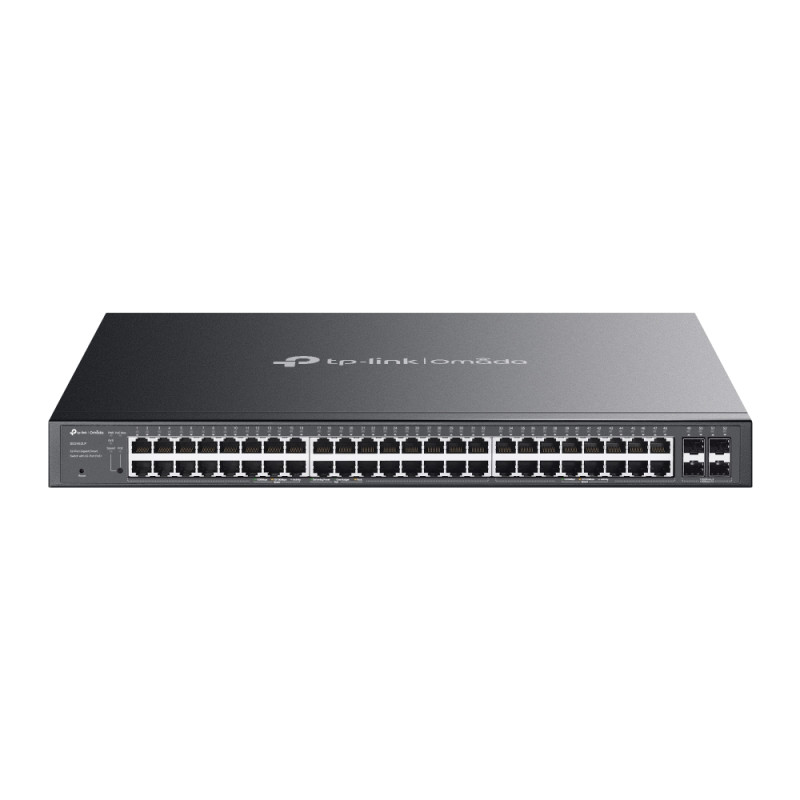

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Data Sheet
Download (633.61k)32× 10/100/1000 Mbps PoE+ RJ45, 16× 10/100/1000 Mbps non-PoE RJ45, 4× Gigabit SFP, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440x330x44 mm
sg2452lp
