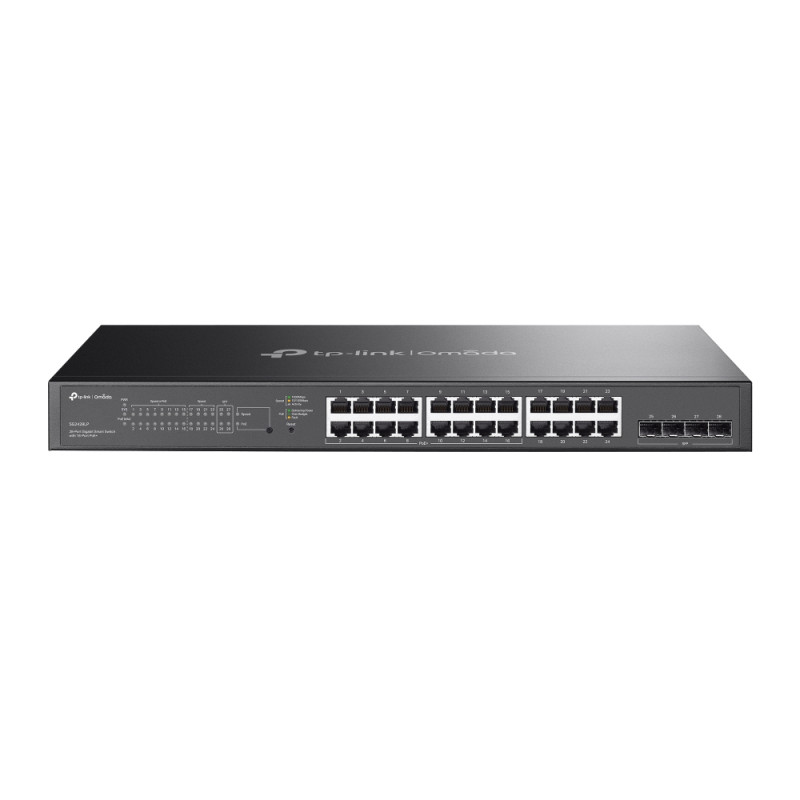

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

More Info
Details
Spec Sheet

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Depth	220 mm
Flow control support	Y
Heat dissipation	628 BTU/h
Height	44 mm
LED indicators	Y
MAC address filtering	Y
MAC address table	8000 entries
Networking standards	IEEE 802.3af,IEEE 802.3at
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	4.1 MB
Power over Ethernet (PoE)	Yes
Quality of Service (QoS) support	Y
Rack mounting	Yes
Spanning tree protocol	Y
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2/L2+
Switch type	Managed
Switching capacity	56 Gbit/s
Web-based management	Y
Width	440 mm
Fanless	Y
Cloud-managed	Y
