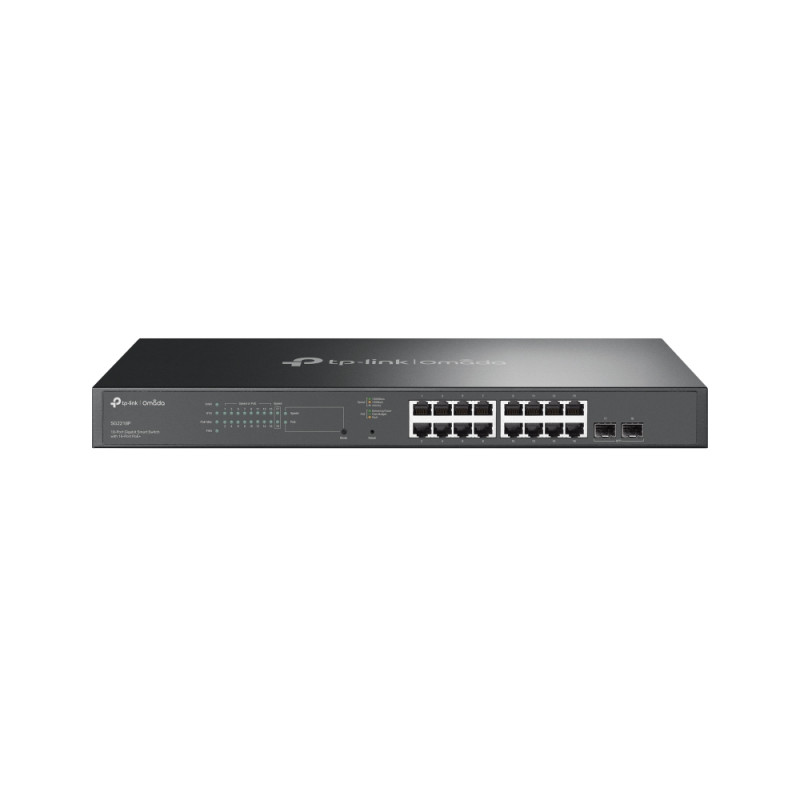

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

More Info
Details
Spec Sheet

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	LAN (RJ-45)
Certification	CE, FCC, RoHS
Depth	180 mm
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Y
Form factor	1U
Heat dissipation	619.06 BTU/h
Height	44 mm
LED indicators	Y
MAC address filtering	Y
MAC address table	8000 entries
MIB support	MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Packet buffer memory	4.1 MB
Power over Ethernet (PoE)	Yes
Quality of Service (QoS) support	Y
Rack mounting	Yes
Spanning tree protocol	Y
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2/L2+
Switch type	Managed
Switching capacity	26.78 Gbit/s
User guide	Y
Web-based management	Y
Width	440 mm
Multicast features	Multicast forwarding
Cloud-managed	Y
