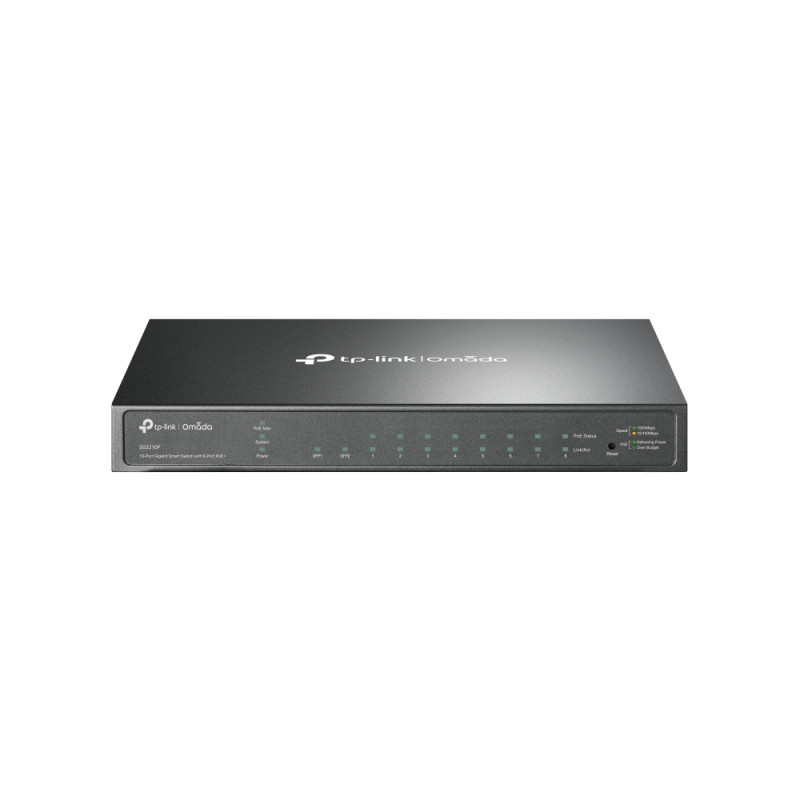

HomeTP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedAC
CertificationCE, FCC, RoHS
Depth126 mm
Firmware upgradeableY
Flow control supportY
Height26 mm
LED indicatorsY
MAC address table8000 entries
ManualY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory4.1 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity20 Gbit/s
Web-based managementY
Width209 mm
Cloud-managedY

sg2210p.pdf

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ Data Sheet

Download (23.29M)

Similar products

  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G
  • TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
    TP-LINK 5-Port 10/100/1000Mbps Desktop...

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

8× 10/100/1000Mbps PoE+ RJ45, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm

sg2210p

Out of Stock

£148.82
£124.02 Ex VAT.
