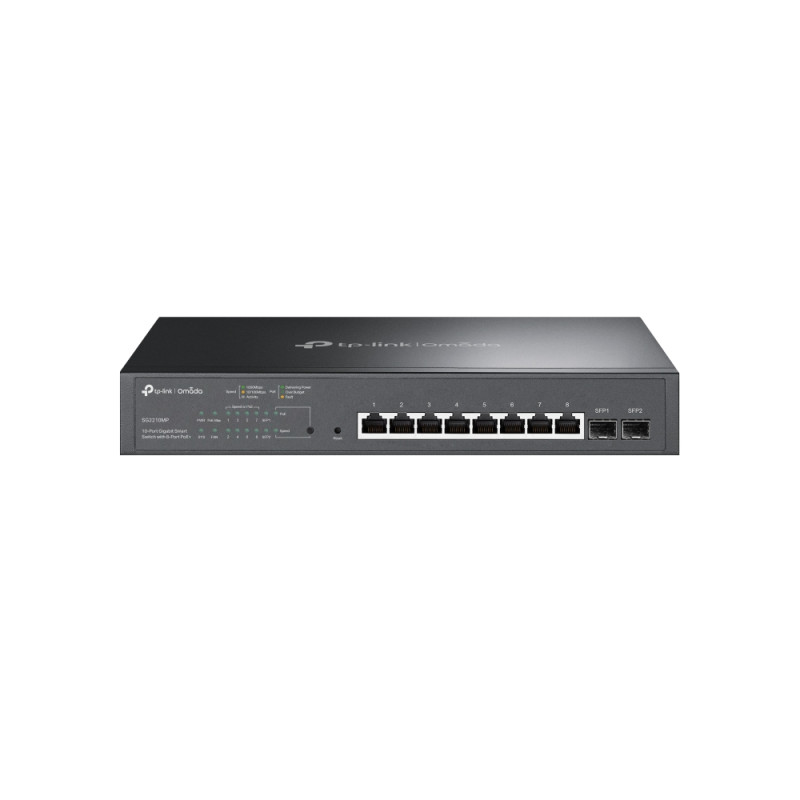

HomeTP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
  • TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, RoHS
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth180 mm
Fiber ethernet cabling technology100BASE-FX,1000BASE-X
Flow control supportY
Form factor1U
Gigabit Ethernet (copper) ports quantity8
Heat dissipation594.46 BTU/h
Height44 mm
MAC address table8000 entries
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory4.1 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Rack mountingYes
Security algorithmsEAP-LEAP,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity20 Gbit/s
Web-based managementY
Width294 mm
Cloud-managedY

sg2210mp.pdf

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ Data Sheet

Download (23.29M)

Similar products

  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G
  • TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
    TP-LINK 5-Port 10/100/1000Mbps Desktop...

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

8× 10/100/1000 Mbps RJ45 PoE+, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 294×180×44 mm

sg2210mp

Out of Stock

£198.98
£165.81 Ex VAT.
