Lightning-Fast Connection with Full 10GE Ports

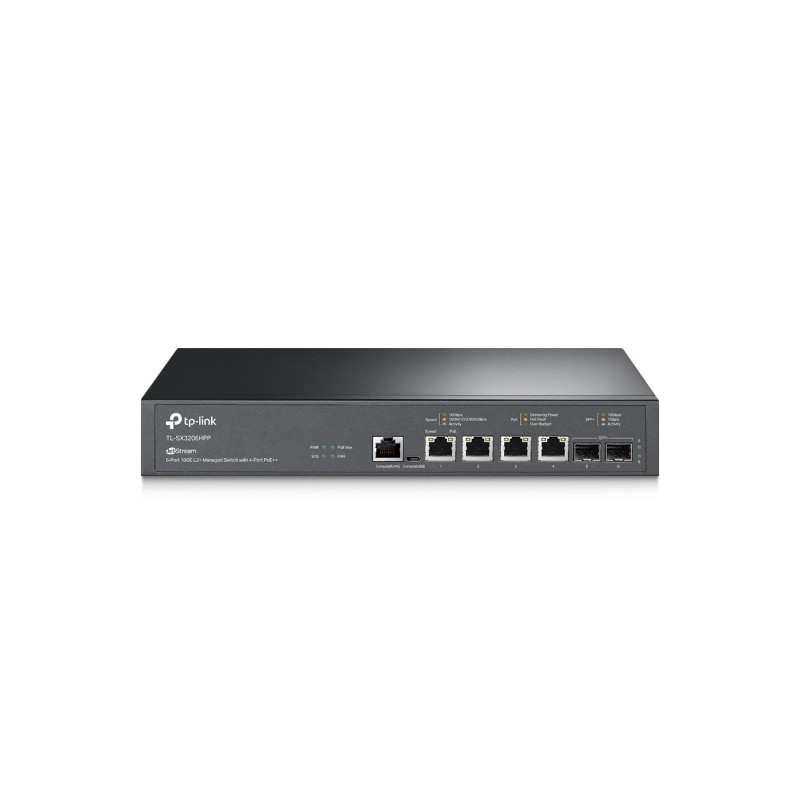

Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.
Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
10G support |
Yes |
AC input frequency |
50 - 60 Hz |
AC input voltage |
100 - 240 V |
Basic switching RJ-45 Ethernet ports quantity |
4 |
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
Cables included |
AC |
Certification |
CE, FCC, RoHS |
Depth |
180 mm |
Flow control support |
Y |
Heat dissipation |
835.67 BTU/h |
Height |
44 mm |
LED indicators |
Y |
MAC address table |
32000 entries |
Management protocols |
SNMP v1/v2c/v3 |
MIB support |
Yes |
Minimum system requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
Number of static routes |
48 |
Number of VLANs |
4000 |
Operating relative humidity (H-H) |
10 - 90 % |
Operating temperature (T-T) |
0 - 50 °C |
Power over Ethernet (PoE) |
Yes |
Quality of Service (QoS) support |
Y |
Quick start guide |
Y |
Rack mounting |
Yes |
Spanning tree protocol |
Y |
Storage relative humidity (H-H) |
5 - 95 % |
Storage temperature (T-T) |
-40 - 70 °C |
Switch layer |
L2+ |
Switch type |
Managed |
Switching capacity |
120 Gbit/s |
Web-based management |
Y |
Width |
294 mm |
Cloud-managed |
Y |
Harmonized System (HS) code |
85176990 |
Specific References
- EAN13
- 6935364006617
Download
TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet
Download (1.08MB)
