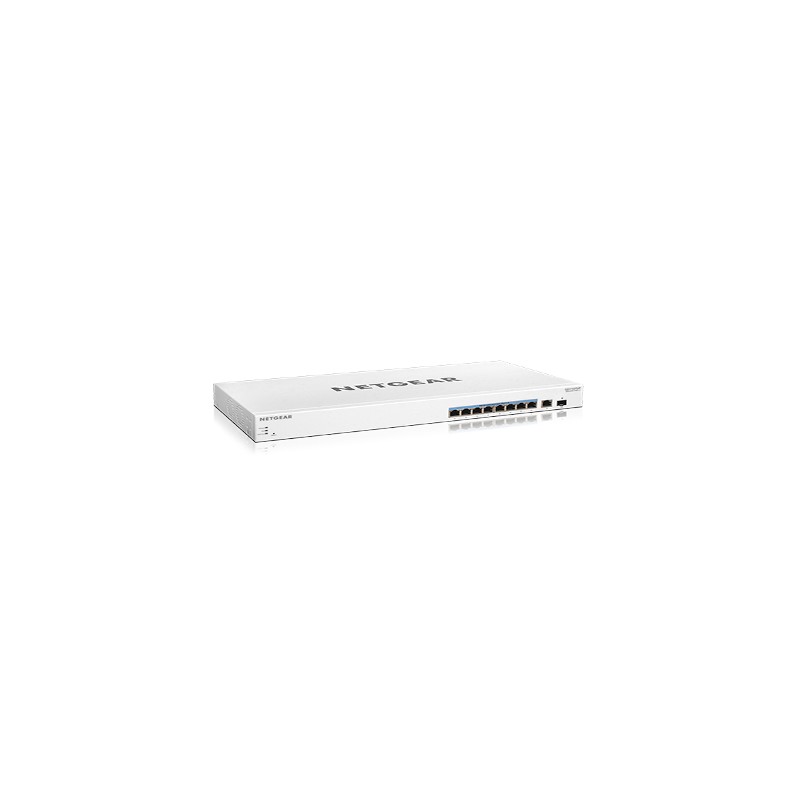

Netgear GS710TUP
  • Netgear GS710TUP
  • Netgear GS710TUP
As the leader in PoE switching, NETGEAR now brings to market the first Cloud Manageable PoE++ switch with Uninterrupted Ultra60 60W PoE++ power to your business together with NETGEAR's innovation "Uninterrupted PoE" for constant power to the devices even during switch firmware updates or reboots.

With IoT (Internet of Things) continuously introducing wired devices for smart home and smart building automation systems, the 802.3bt PoE standard is needed to support those devices that require greater power - power that the 802.3at standard (30W per port) cannot support.

With the growing demand in modern business organizations for more Powered Devices (PD) and higher Power-overEthernet (PoE) consumption per PD, NETGEAR proudly introduces the new Ultra60 PoE++ Smart Managed Pro Switches with the 802.3bt standard to provide up to 60W per port output PoE.

In addition to the IoT devices, these new Ultra60 PoE++ switches will support 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers and AV encoders, as well as other high-powered devices.

NETGEAR Ultra60 PoE++ Smart Managed Pro Switches offer advanced Layer 2+/Lite Layer 3 features such as static routing, advanced PoE functionality and controls including NETGEAR's innovative Uninterrupted PoE, and Remote/Cloud management capability with enhanced performance. These switches are the ideal solution even for the most advanced business organizations looking for the best combination of features, performance, and value. These switches are purposely designed for converged networks where voice, video, and data are all carried on a single network platform.

The GS110TUP comes with 4 Ultra60 PoE++ Gigabit ports, 4 PoE+ Gigabit ports, 1 dedicated non-PoE Gigabit copper and 1 dedicated Gigabit SFP port. With a 240W total PoE budget, the GS110TUP is sufficient for 802.3at PoE+ devices as well as future-proofing for 802.3bt PoE++ deployment. The fanless, silent design makes it perfect for an office

environment or any other noise-sensitive deployments. With versatile mounting options, this small is flexible enough to to be placed on a desk, mounted to the wall, ceiling or pole, or mounted in a rack.

The GS710TUP comes with 8 Ultra60 PoE++ Gigabit ports, 1 dedicated nonPoE Gigabit copper and 1 dedicated Gigabit SFP port, and includes a 480W PoE budget, offering full 802.3bt 60W PoE output across the 8 Ultra60 PoE++

ports. The GS710TUP is rack-mountable, and with an operating noise of less than 35dBA, the switch can also be placed outside of the data closet without disrupting those working nearby.

To fully empower PoE applications, NETGEAR Insight Remote/Cloud Management is now available on these two new switch models as an optional management mode. Activating the NETGEAR Insight Cloud management, enables management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Basic switching RJ-45 Ethernet ports quantity9
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorY
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth204 mm
Fiber ethernet cabling technology1000BASE-X
Flash memory32 MB
Flow control supportY
Full duplexY
Heat dissipation1891.36 BTU/h
Height43 mm
Internal memory128 MB
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)643873 h
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Noise level35 dB
Number of static routes32
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory0.5 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Rack mountingYes
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Switch layerL2/L3
Switch typeManaged
Switching capacity20 Gbit/s
Weight2990 g
Width440 mm

gs710tup-100eus.pdf

Netgear GS710TUP Data Sheet

Download (761.1k)
