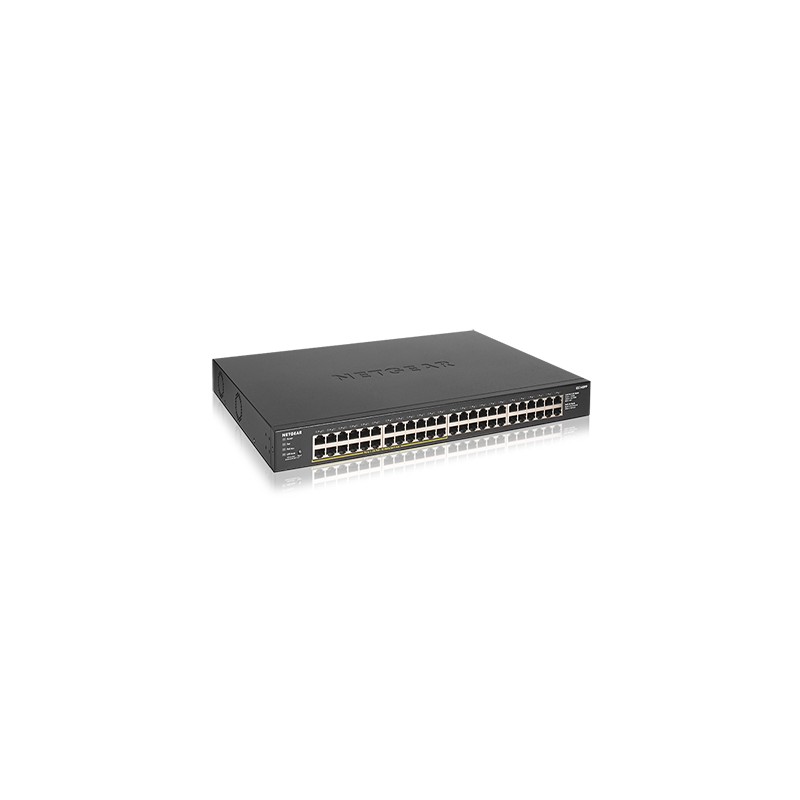

NETGEAR SOHO Ethernet Unmanaged Switches

SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.

Extended Features

- Choice of Fast Ethernet and Gigabit Ethernet connectivity

- Energy-efficient technology for power savings

- Auto-MDI/MDIX eliminates the need for crossover cables

- Non-blocking switching architecture for maximum throughput at wire speed

- Auto-negotiation for automatic connection at the highest common speed between switch and an end device

- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices

- Fanless design for silent opeartion

- Desktop, wall-mountable or rack-mountable (GS324, GS348)

AC input frequency	50/60 Hz
AC input voltage	110 - 240 V
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	AC
Certification	CE, FCC 15 A, IC A, RCM, VCCI, KC\nCB, CE LVD, UL
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Depth	310 mm
Full duplex	Y
Heat dissipation	1402.2 BTU/h
Height	43 mm
Housing material	Metal
LED indicators	Activity,Link,PoE,Power,Speed
MAC address table	8000 entries
Mean time between failures (MTBF)	570972 h
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 45 °C
Packet buffer memory	1.5 MB
Power over Ethernet (PoE)	Yes
Quality of Service (QoS) support	Y
Rack mounting	Yes
Storage relative humidity (H-H)	10 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Switch type	Unmanaged
Switching capacity	96 Gbit/s
User guide	Y
Weight	4560 g
Width	440 mm
