Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.
Auto MDI/MDI-X |
Y |
Basic switching RJ-45 Ethernet ports quantity |
4 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Certification |
47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)
EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8
IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration
CE, FCC |
Copper ethernet cabling technology |
1000Base-T |
Depth |
28 mm |
Height |
102 mm |
Input current |
1 A |
International Protection (IP) code |
IP40 |
LED indicators |
Link,Power |
MAC address table |
4000 entries |
Mean time between failures (MTBF) |
569768 h |
Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
-20 - 65 °C |
Quality of Service (QoS) support |
Y |
Stackable |
Yes |
Storage relative humidity (H-H) |
5 - 95 % |
Storage temperature (T-T) |
-20 - 85 °C |
Store-and-forward |
Y |
Switch type |
Managed |
Switching capacity |
12 Gbit/s |
Weight |
446 g |
Width |
162 mm |
Fanless |
Y |
Specific References
- EAN13
- 0790069455629

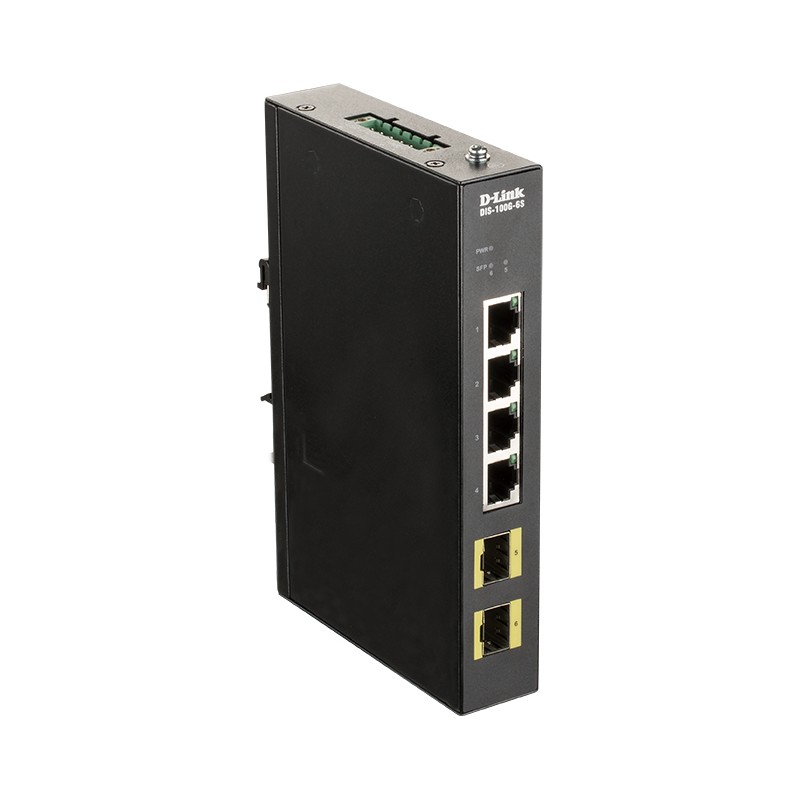

D-Link DIS-100G-6S Data Sheet
