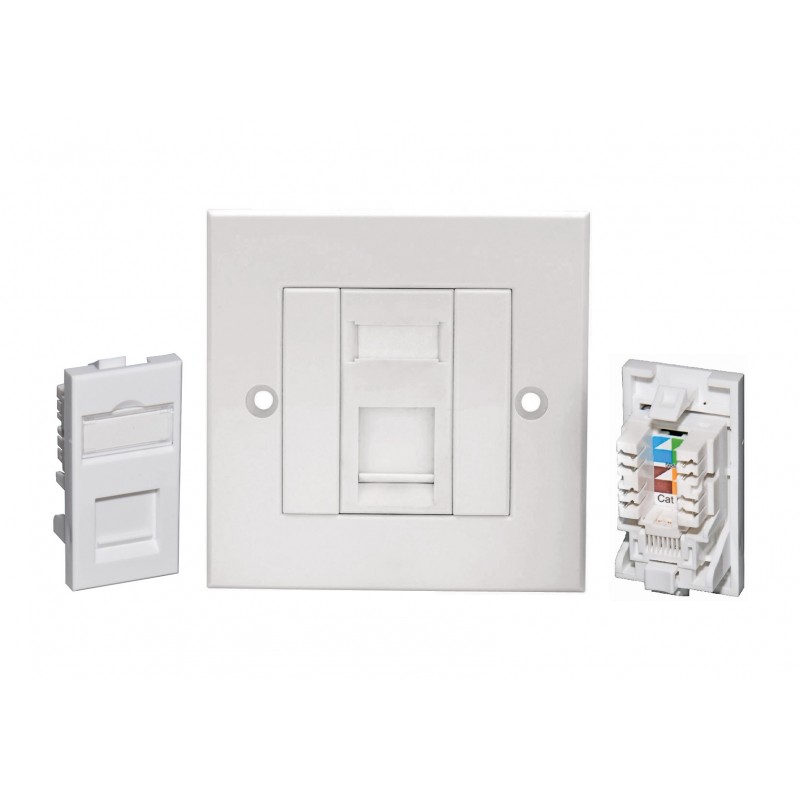

The Connectix Enhanced Category 6 way loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate.

  • Ready assembled outlet, ready for installation.
  • Exceeds Enhanced Cat6 specification when used alongside our cable and patch panels

Details:

Module Details

The Connectix Category 6 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and UTP Cable the user will get a link performance exceeding the Category 6 requirements.

Features:

  • Suitable for Gigabit Ethernet applications
  • Shallow design requires minimal back-box depth
  • Interchangeable with all other Euro modules and quarter blanks
  • Fits all standard Euro faceplates
  • Individually QA tested



Specification:

  • Width - 25mm
  • Depth - 21mm
  • Height - 50mm
  • Back-box Depth - Minimum 15mm recommended
  • Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
  • Finish - High gloss
  • IDC Labels - Individual colour coded to T568B
  • IDC Blocks - 4 way industry standard IDC blocks
  • Conforms to - ANSI/TIA-568-C Category 6 Specification
ShieldedNo
SpecificationCat6
TerminationKrone Style IDC PunchDown

Guy B - 29/02/2024

Nice product. Easily wired

Jake C - 22/11/2023

It does what it needs to do. very pleased.

Liam G - 30/12/2022

These worked fine, just don't punch down write they're clipped in else you will snap the retaining clips.

David M - 06/11/2022

Great quality outlets

AARON m - 02/02/2022

Good product easy to fit

AARON m - 02/02/2022

Good product easy to fit

stuart r - 17/03/2021

Do the job there intended to do.

Ritchie C - 11/01/2021

Haven't used yet but seems good

Brian H - 23/12/2020

easy to install

Terry S - 17/12/2020

It's a faceplate, what more can I say. It works

Oliver P - 12/12/2020

Pretty much as described. Worked perfectly and couldn't ask for anything better. Solid and reliable connection and a solid faceplate too.

stuart k - 29/11/2020

It works. Easy install. Not a lot bad to go wrong with this.

Rolf T - 13/11/2020

Not installed yet, but quality seems fine

Rolf T - 13/11/2020

As above

Jon S - 22/01/2020

Worked fine and look great.

Stuart H - 27/11/2019

Saves ordering all the bits separately!
