Battery type | Lead-Acid |
Colour of product | Black, Silver |
Dimensions (WxDxH) | 472 x 688 x 838 mm |
I/O ports | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
Interface | DB-9 RS-232,Smart-Slot |
Nominal input voltage | 230-400 V |
Nominal output voltage | 230 V |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 |
Output power | 8400 W |
Output power capacity (VA) | 12000 VA |
Output voltage note | 220: 230, 240 |
Package dimensions (WxDxH) | 599 x 997 x 1054 mm |
Package weight | 290000 g |
Power supply input frequency | 45 - 65 Hz |
Quantity per pallet | 1.00 pc(s) |
Replacement battery cartridge | SYBT5 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Typical backup time at full load | 7.5 min |
Typical backup time at half load | 20.2 min |
Weight | 242.73 g |

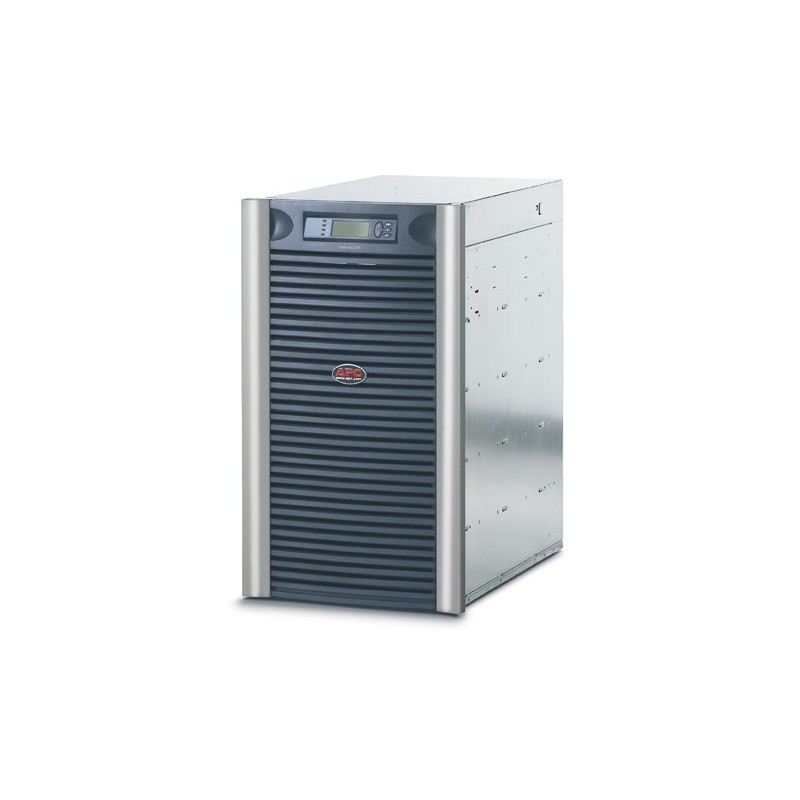

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V
SYA12K16RMI
Out of Stock
