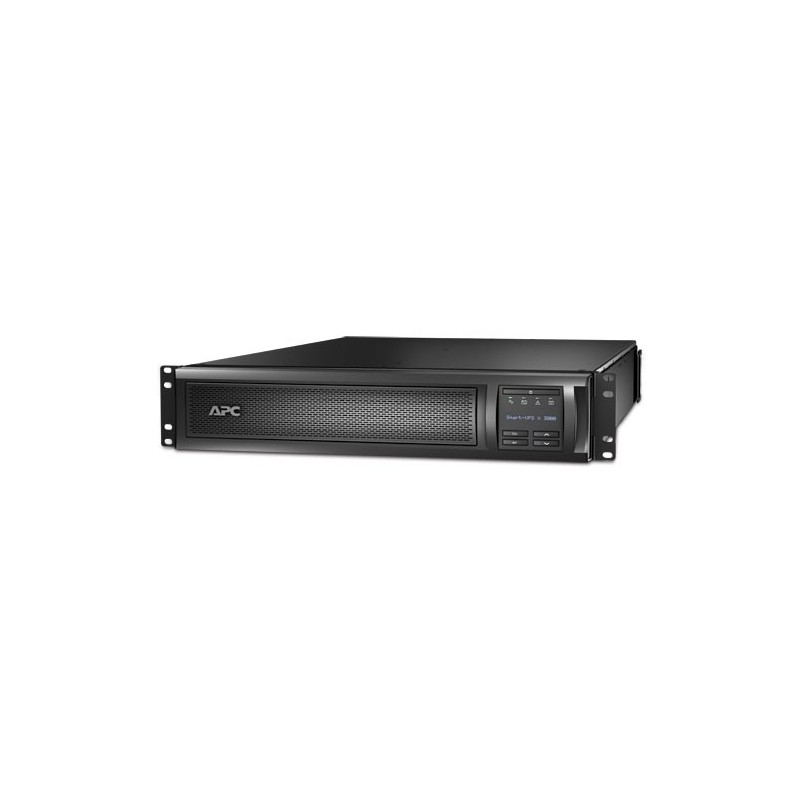

APC SMX3000RMHV2UNC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
  • APC SMX3000RMHV2UNC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
  • APC SMX3000RMHV2UNC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
  • APC SMX3000RMHV2UNC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
  • APC SMX3000RMHV2UNC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card

Please Note, this product is not for consumer use in the European Union.

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Manageability

Network manageable

Provides remote management of the UPS over the network.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



LED status indicators

Quickly understand unit and power status with visual indicators.



Serial Connectivity

Provides management of the UPS via a serial port.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.



Resettable circuit breakers

Enables a quick recovery from overload events.



Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance



Adaptability

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Battery capacity738 VAh
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Cable length2.44 m
Cables includedRS-232
CertificationC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
Colour of productBlack
Depth667 mm
DisplayLED
Efficiency98.5 %
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount/Tower
Height85.00 mm
Hot-swap batteryYes
LED indicatorsYes
ManualYes
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output operation voltage (max)240 V
Output operation voltage (min)208 V
Output power2700 W
Output power capacity (VA)3000 VA
Package dimensions (WxDxH)596 x 869 x 243 mm
Package height85 mm
Package weight45360 g
Package width596 mm
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Rack capacity2U
Rack mountingYes
Replacement battery cartridgeAPCRBC117
Response time4 ms
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating645 J
Typical backup time at full load6.3 min
Typical backup time at half load18 min
WaveformSine
Weight37320 g
Width432.00 mm
