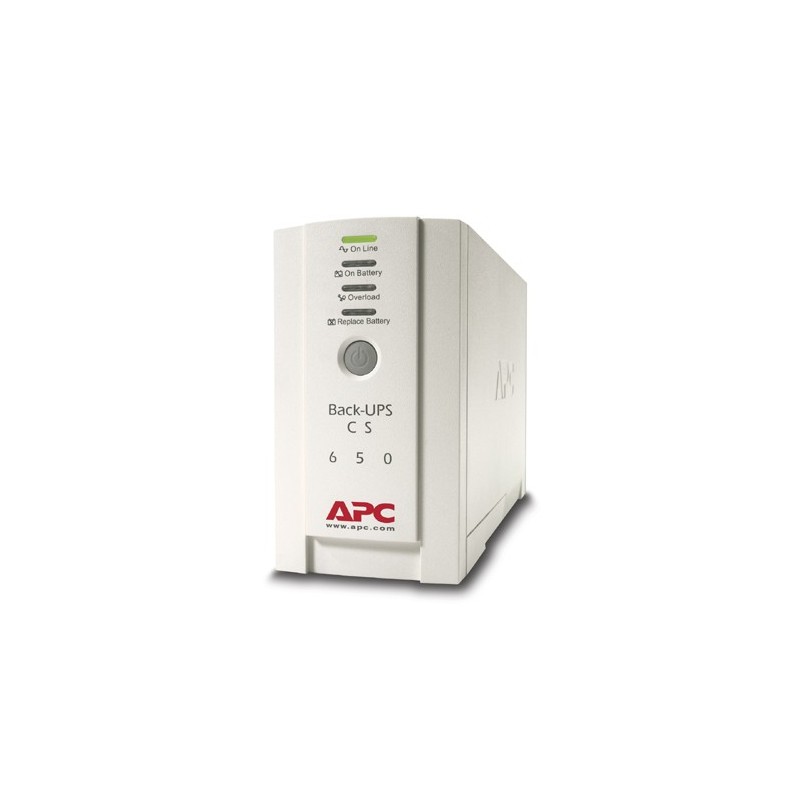

APC BK650EI Back-UPS 650VA, 230V
  • APC BK650EI Back-UPS 650VA, 230V
  • APC BK650EI Back-UPS 650VA, 230V
The re-invention of the most relied upon desktop UPS in history: the Back-UPS!



The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery capacity95 VAh
Battery recharge time8 h
Battery technologySealed Lead Acid (VRLA)
Battery voltage12 V
Bundled softwarePowerChute Personal Edition
Cable length2 m
Cables includedUSB cable
CertificationA-tick, C-tick, CE, GOST, NEMKO
Colour of productBeige
Depth284 mm
Dimensions (WxDxH)91 x 284 x 165 mm
Efficiency98.9 %
Energy Star certifiedYes
FilteringYes
Form factorTower
Height165 mm
Input connection typeIEC-320 C14
Input operation voltage (max)286 V
Input operation voltage (min)160 V
InterfaceDB-9 RS-232, USB
LED indicatorsYes
Maximum current7 A
Noise level45 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections1 x IEC 320 C13 3 x IEC 320 C13
Output power400 W
Output power capacity (VA)650 VA
Package dimensions (WxDxH)185 x 415 x 494 mm
Package height494 mm
Package weight7310 g
Package width185 mm
Power supply input frequency50/60 Hz
Quantity per pallet48 pc(s)
Quick installation guideYes
Replacement battery cartridgeRBC17
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating310 J
Surge protection featuresDigital Subscriber Line (DSL),Fax,Modem,Telephone
Typical backup time at full load4.7 min
Typical backup time at half load14.7 min
USB portYes
WaveformSine
Weight6030 g
Width91 mm
