Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EP offers 63W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.New and improved Smart Managed Plus switches Along with the already great Smart Managed Plus features, GS305EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.Why GS305EP? - Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc. - Data security and network separation to safeguard your business. - Advanced per port PoE controls (including power allocation override) and remote enable/disable/power cycle. - Smart Managed Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.Why 300 Series NETGEAR Smart Managed Plus? - NETGEAR has the largest PoE switch portfolio in the market. - Provides both basic and advanced management features at a cost-effective price for SMBs. - Uninterrupted PoE and PoE controls in a Smart Plus switch. - Reliability of the NETGEAR switches.
10G supportNo
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Depth101 mm
Height27 mm
Housing materialMetal
Input current1.25 A
LED indicatorsActivity,Link,PoE,Power,Speed,System
MAC address table4000 entries
Mean time between failures (MTBF)1164104 h
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Non-operating altitude0 - 3000 m
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.192 MB
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Quality of Service (QoS) supportY
Quick start guideY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Switch layerL3
Switch typeManaged
Switching capacity10 Gbit/s
Web-based managementY
Weight390 g
Width158 mm
FanlessY

gs305ep-100uks.pdf

Netgear GS305EP Data Sheet

Download (587.33k)

Similar products

  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G
  • TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
    TP-LINK 5-Port 10/100/1000Mbps Desktop...

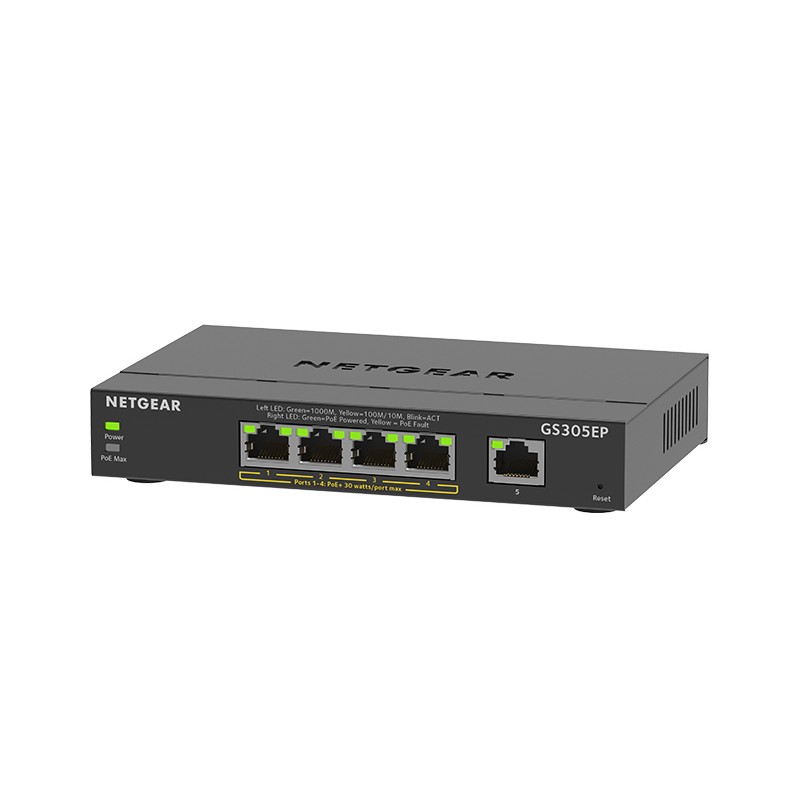

Netgear GS305EP

Managed, L3, 5x 10/100/1000 RJ45, 4x PoE 63W, 10Gbps, 158 x 101 x 27 mm

GS305EP-100UKS

In Stock

£69.09
£57.58 Ex VAT.
