8u 10" Mini Office Cabinet - 350mm Deep
  • 8u 10" Mini Office Cabinet - 350mm Deep
  • 8u 10" Mini Office Cabinet - 350mm Deep

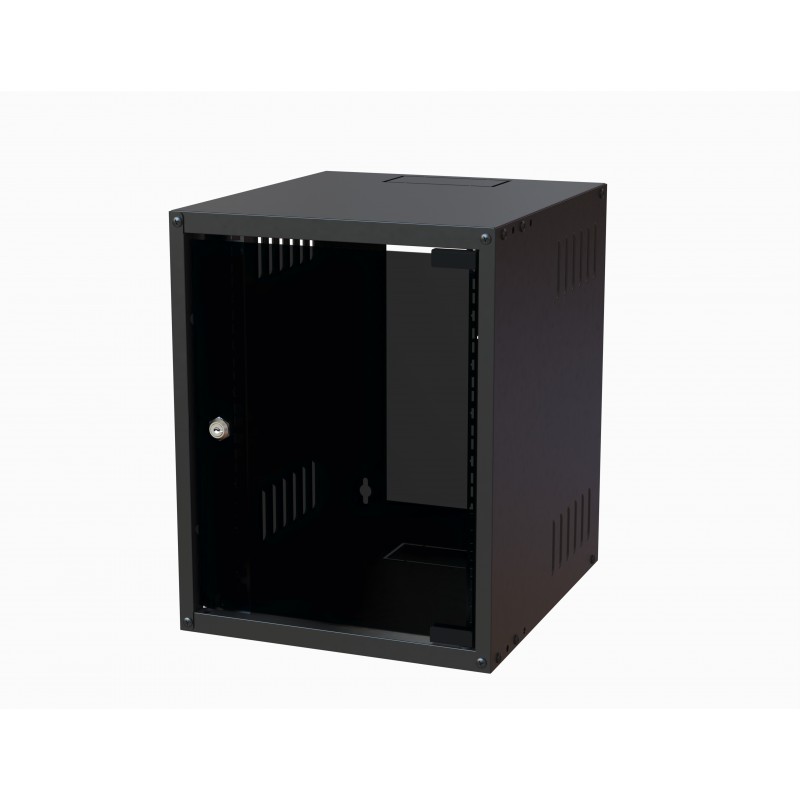

The compact design of the Racky Rax 8u Cabinet makes it the ideal housing for small network requirements, allowing integration of voice, data, ISDN and internet connections in one neat unit. The cabinet has been designed to fit perfectly into both the office and home environment, and has an 8u capacity for the Connectix Office System range of 10” networking hardware and patching equipment.

The cabinet is available in a black finish. The lockable smoked glass door enables easy patching from the front of the unit, and cable access glands are situated in the top and bottom to assist installation. They also have added ventilation slots in both sides.

An extensive range of cabinet accessories are available, including; shelves, blank panels, brush strip panels and cable tidy panels.

Details

Features:

  • Ideal for the small office/home environment
  • Available with attractive black
  • Lockable front door
  • Cable access glands positioned in top and bottom of unit
  • Open Back



Specification:

  • Finish - Black powder coat to BS6496
  • Material-  Mild steel to BS1449
  • Width - 310mm
  • Depth - 351mm
  • Height - 400mm
  • Door - Smoked grey glass
  • Capacity - 8 units (8u).
Cable EntryTop & Bottom
ConstructionWelded
Front Door TypeSmoked grey polycarbonate
Internal Working Depth265mm
Mounting Profiles10" Front Only
Side PanelsSolid
U Height8u
Width270mm
Overall Height400mm
