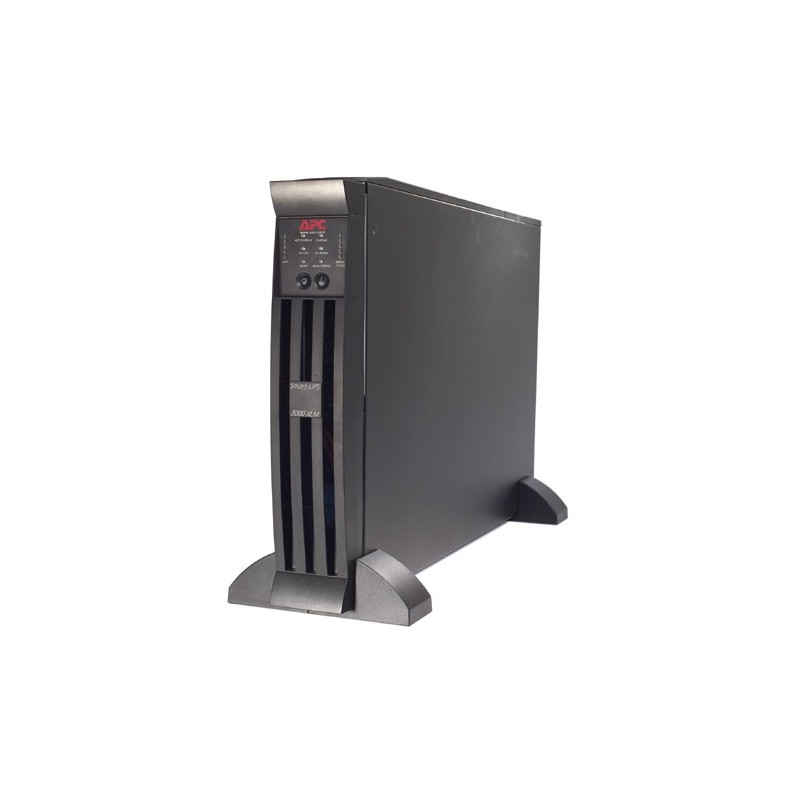

APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower
  • APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower
  • APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower

Please Note, this product is not for consumer use.

APC Smart-UPS XL, 3000VA/2850W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U

Includes: CD with software, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual


Adjustable voltage-transfer points, Audible Alarms, Automatic internal bypass,

Automatic self-test, Boost and Trim Automatic Voltage Regulation (AVR),

Cold-start capable, Disconnected battery notification, Hot-swappable batteries, LED status indicators, Modular design, Network manageable,

Rack/Tower Convertible, Safety-agency approved, Scalable runtime,

Serial Connectivity, SmartSlot, Temperature-compensated battery charging,

USB Connectivity, User-replaceable batteries, User-replaceable power modules.

Battery typeVRLA
Bundled softwareCD with software
Cable length3 m
Colour of productBlack
Dimensions (WxDxH)430 x 680 x 90 mm
Filtering0.3% IEEE/UL 1449
I/O portsPre-Installed SmartSlot Card - AP9617
Input connection typeIEC-320 C20
InterfaceDB-9 RS-232, RJ-45 10/100 Base-T, USB
LED indicatorsLED status display
Networking featuresYes
Nominal input voltage230 V
Nominal output voltage230 V
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(7) IEC 320 C13 (1) IEC 320 C19 (4) IEC Jumpers
Output power2850 W
Output power capacity (VA)3000 VA
Power supply input frequency50 - 60 Hz
Replacement battery cartridgeRBC43
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-20 - 45 °C
Storage temperature range (T-T)-20 - 45 °C
Surge energy rating490 J
Typical backup time at full load3.5 min
Typical backup time at half load11.9 min
Weight47000 g


APC Smart-UPS XL Modular 3000VA 230V Rackmount/Tower


Out of Stock

£3,185.89 Ex VAT.
