A full range of high quality BS1363 UK outlet Power Distribution Units range with a built-in blue LED quality ammeter.
Key Features:
- Robust all aluminium housing
- BS1363 UK Sockets
- External earth facility
- Choice of standard and filtered solutions with input plug variants
PLEASE NOTE DESIGN OF THE FILTERED PDU's WITH THE PART CODE STARTING PDU- WILL VARY IN DESIGN.
Dimensions
| Product | Mounting Centres | Height | Overall Length |
| 4 Way PDU with 16A IEC 60309 Plug | 465 mm | 44.5 mm | 482.6 mm |
| 6 Way PDU with 16A IEC 60309 Plug | 465 mm | 44.5 mm | 482.6 mm |
| 8 Way PDU with 16A IEC 60309 Plug | 551.6 mm | 44.5 mm | 572.6 mm |
| 10 Way PDU with 16A IEC 60309 Plug | 655.6 mm | 44.5 mm | 678.6 mm |
| 12 Way PDU with 16A IEC 60309 Plug | 762.6 mm | 44.5 mm | 785.6 mm |
| 4 Way Surge Protected PDU with 16A IEC 60309 Plug | 465 mm | 44.5 mm | 482.6 mm |
| 6 Way Surge Protected PDU with 16A IEC 60309 Plug | 465 mm | 44.5 mm | 482.6 mm |
| 8 Way Surge Protected PDU with 16A IEC 60309 Plug | 659.2 mm | 44.5 mm | 680.2 mm |
| Socket type | UK BS 1363 Socket |

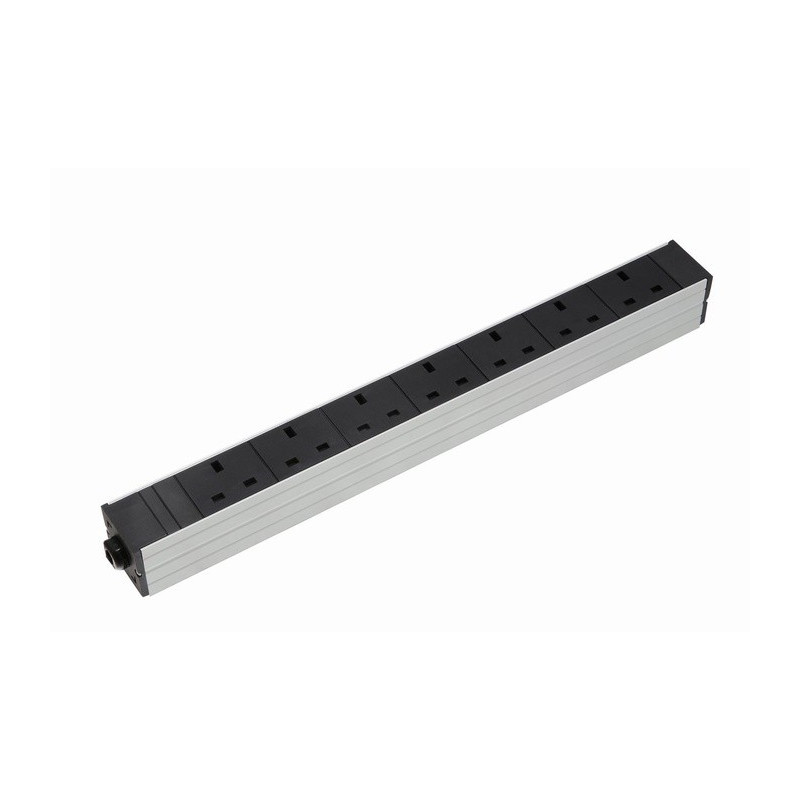

UK Socket / C16 Commando Plug Rack PDU
Rack Power Distribution Unit with BS 1363 UK Sockets & 16Amp C16 Commando Input Plug - Available with or without Surge Protection
£38.98
Tax included
Rack Power Distribution Unit with BS 1363 UK Sockets & 16Amp C16 Commando Input Plug - Available with or without Surge Protection
