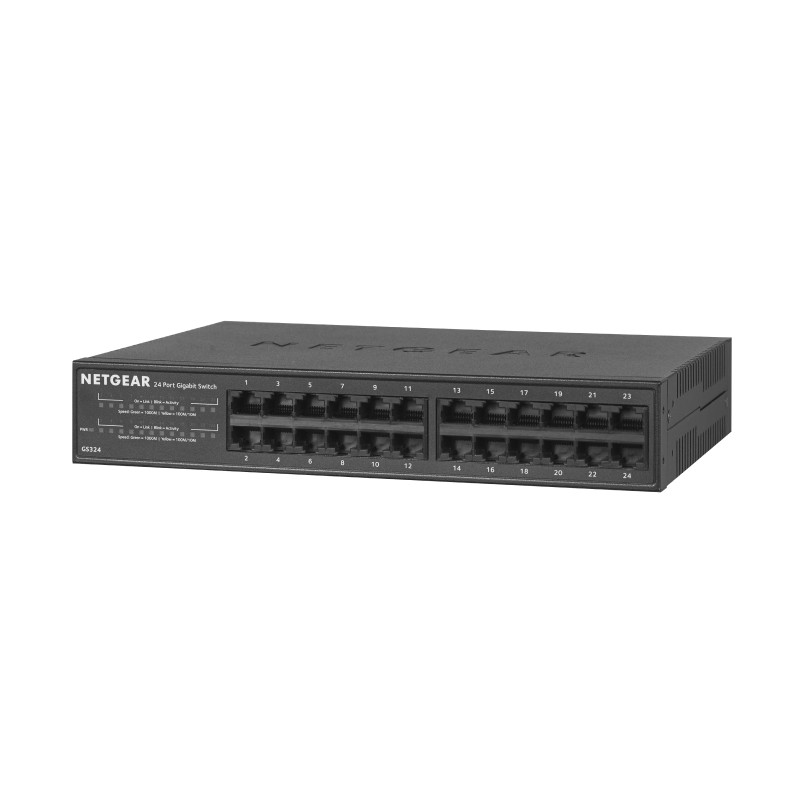

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.PLUG & PLAY Simple setup with no software or configuration needed.FLEXIBLE MOUNTING Mount on rack, desktop, or wall.SMALL SIZE, METAL CASE, AND SILENT OPERATION Durable quality, space saver, and quietness for peace of mind.STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS Can be placed on desk or on mounted rack and will operate quietly with assured durability.

AC input frequency	50/60 Hz
AC input voltage	110 - 240 V
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat5
Cables included	AC
Certification	CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD
Depth	180 mm
Heat dissipation	37.96 BTU/h
Height	44 mm
Housing material	Metal
Input current	1 A
LED indicators	Activity,Link,Power,Speed
MAC address table	8000 entries
Manual	Y
Mean time between failures (MTBF)	620798 h
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 90 %
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	0.512 MB
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Y
Rack mounting	Yes
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Switch type	Unmanaged
Switching capacity	48 Gbit/s
Weight	1310 g
Width	252 mm
Fanless	Y
