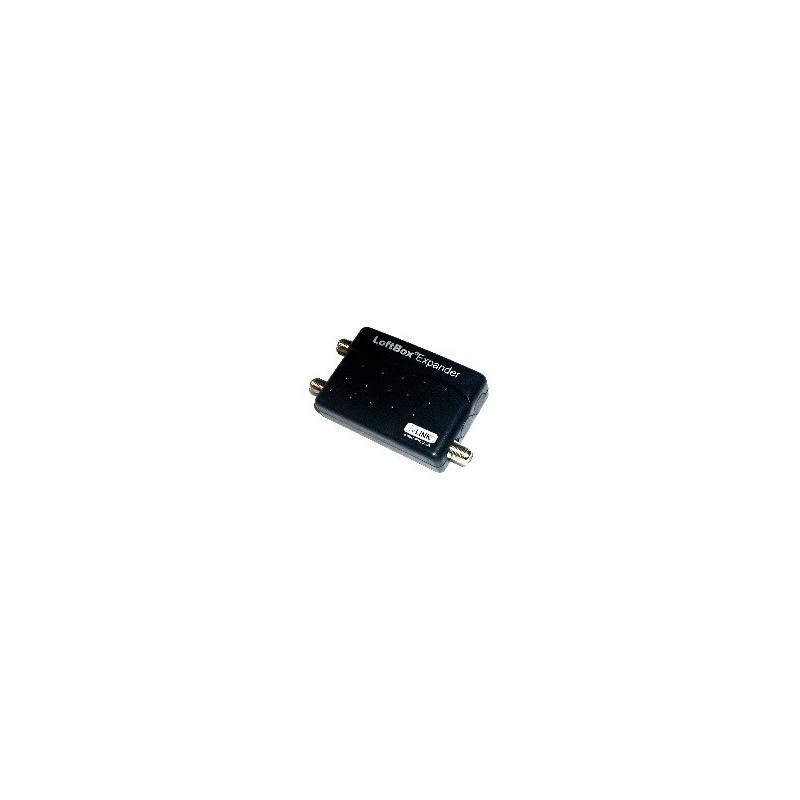

tvLINK LoftBox® Expander
  • Fully compatible with the tvLINK® system.
  • Allows connection of Sky+ and Sky HD to an existing LoftBox® system.
  • No further cable runs required.



The LoftBox® Expander has been designed to allow two LNB outputs to be connected to an existing LoftBox® distribution system.

It is ideally suited for when a SKY+ receiver is being installed. The Sky+ requires two feeds from the LNB (dish), so where there are no spare cables available to take the extra feed, the LoftBox® Expander combines the two feeds onto one cable.

The unit operates by adding the additional dish signal onto the returning UHF feed between the RFout2 port of the Sky set-top box and the UHF2 port of the LoftBox®. A Diplex plate WILL be required in the living room in order to successfully extract the second dish signal ready for connecting into the satellite set-top box (see system diagram).

You might also like

  • tvLINK Dip1 Splitter
    tvLINK Dip1 Splitter
  • 100mm 1u 10" Shelf
    100mm 1u 10" Shelf
  • Network Installation Tool Kit
    Network Installation Tool Kit
  • Lounge Plate (TV, FM/DAB, SAT, Uplink & Telephone Socket)
    Lounge Plate (TV, FM/DAB, SAT, Uplink & Telephone Socket)
  • tvLINK Magic Eye Remote Control Sensor
    tvLINK Magic Eye Remote Control Sensor
  • Triplex TV Plate (TV, FM/DAB, SAT)
    Triplex TV Plate (TV, FM/DAB, SAT)
  • Cat6 UTP RJ45 Modules with Faceplate
    Cat6 UTP RJ45 Modules with Faceplate
  • Cat5e UTP RJ45 Booted PVC Patch Lead
    Cat5e UTP RJ45 Booted PVC Patch Lead

tvLINK LoftBox® Expander

Allows connection of Sky+ and Sky HD to an existing LoftBox® system.

009-003-002-02

Out of Stock

£13.20
£11.00 Ex VAT.
