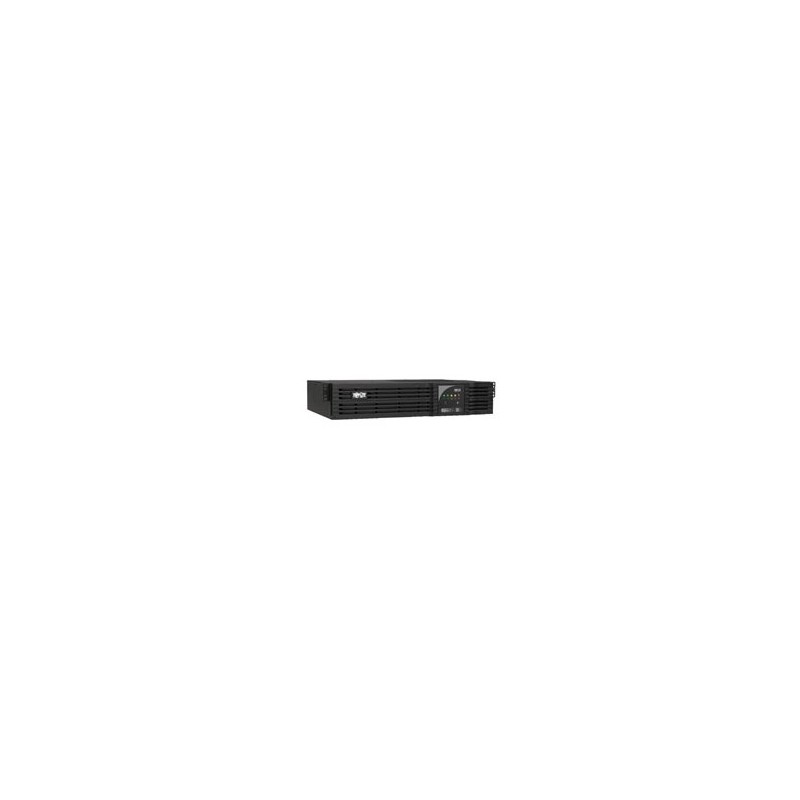

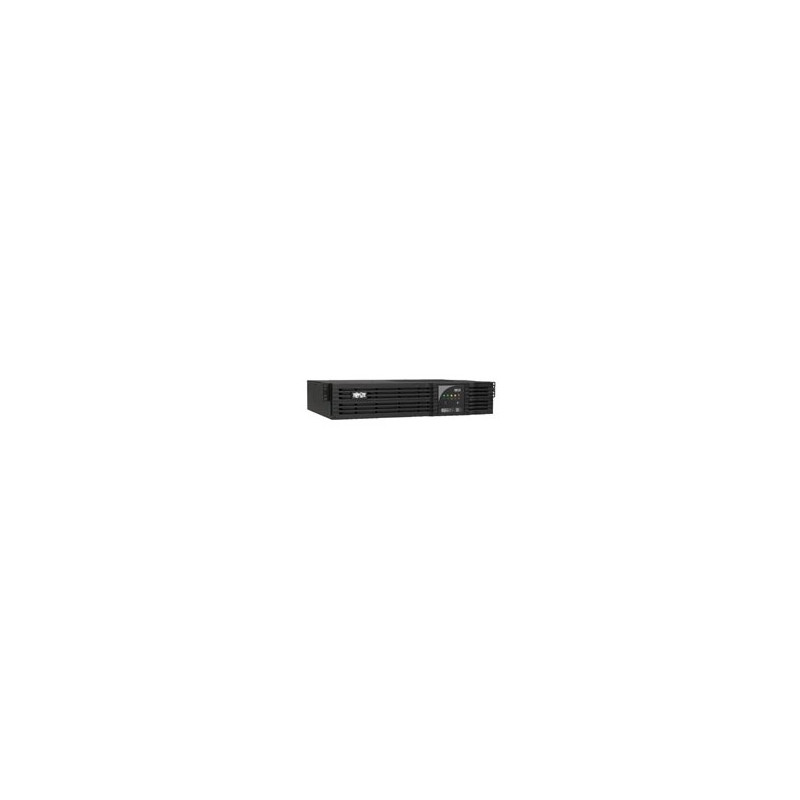

Tripp-Lite SmartPro 2.2kVA Line Interactive Sine Wave UPS

SmartPro Expandable Rack/Tower UPS System - 2200 VA - 1600 W

More details

SMX2200XLRT2U

Out of Stock

Tripp Lite's SMX2200XLRT2U intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime ... Read More

Browse our range of high quality PDUs

New product

£729.48

£607.90 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Tripp Lite's SMX2200XLRT2U intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 17 min. half-load runtime and 6 min. at full load. Runtime is expandable with optional BP48V24-2U or BP48V60RT-3U external battery packs. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 158-290V. 2200VA/1600W power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. 8 C13 outlets including 3 load banks (1 outlet each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in case of fire or emergency. Multi-function audible alarms and 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.

- 2200VA/1600W output power capacity compatible with 230V 50/60Hz power.
- 2U rack/tower UPS installs in standard 19-in. rack enclosures with an installed depth of only 19 in.
- Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges.
- Large internal batteries offer 17 min. runtime at half load (1100VA) and 6 min. at full load (2200VA).
- Runtime is expandable with external battery packs (BP48V24-2U—limit 1 or BP48V60RT-3U—multi-pack compatible).
- 8 C13 outlets, including 3 load banks (1 outlet each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment.
- IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles.
- Line-interactive automatic voltage regulation (AVR) corrects inputs from 158-278VAC back to usable 230V nominal levels without consuming battery power.
- Network interfaces support simultaneous communications via HID-compliant USB port, DB9 serial port, and SNMPWEBCARD slot.
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP.
- HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X.
- Emergency Power Off (EPO) interface with cable.
- Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter.
- Multi-function audible alarms and set of 5 front panel LEDs.
- UPS battery set ships fully assembled; no time-consuming connection of internal batteries by user is required.
Battery recharge time4.5 h
CertificationCE, GOST, SASO, FCC Part 15 Category A, ROHS
Colour of productBlack
Dimensions (WxDxH)444 x 483 x 89 mm
Form factorRackmount
Input connection typeC 14
LED indicatorsYes
Nominal input voltage240 V
Nominal output voltage240 V
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections8 x C13
Output power1600 W
Output power capacity (VA)2200 VA
Package dimensions (WxDxH)597 x 508 x 229 mm
Package weight32700 g
Response time4 ms
Serial ports quantity1
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Surge energy rating350 J
Typical backup time at full load6 min
Typical backup time at half load17 min
Weight27700 g
EAN0037332124562
ManufacturerTripp-Lite
