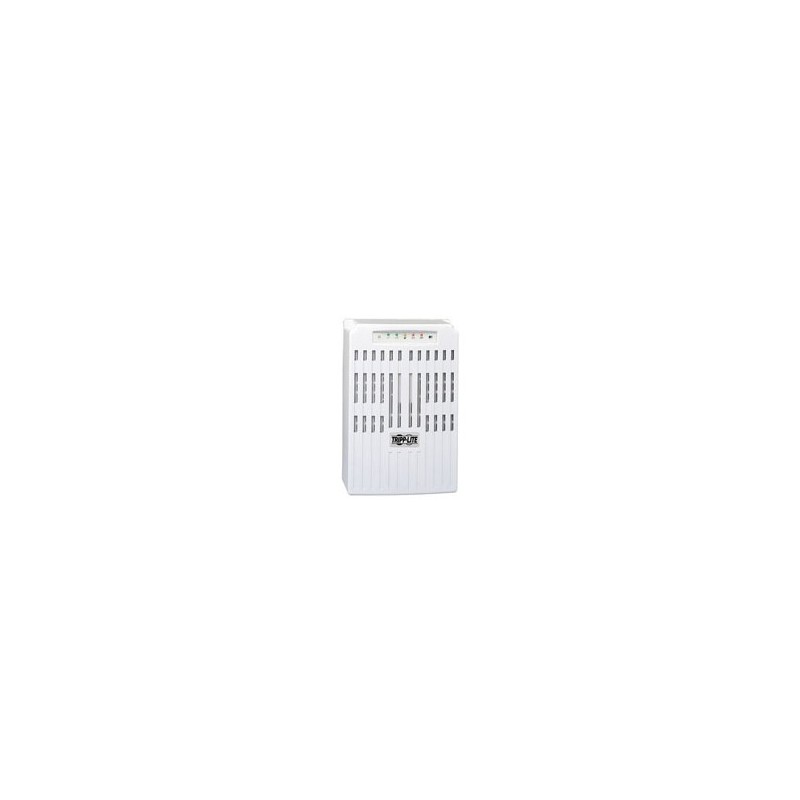

Tripp-Lite SmartPro 2.2kVA Line Interactive UPS

SmartPro Tower UPS - 2200 VA - 1600 W

More details

SMARTINT2200VS

Stock Due 2018-02-06

Tripp Lite's SMARTINT2200VS intelligent, line interactive tower uninterruptible power supply (UPS) prevents data loss, ... Read More

Need a custom made cabinet? we have it covered

New product

£685.77

£571.48 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Tripp Lite's SMARTINT2200VS intelligent, line interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of 9 outlets with 3 load banks (2 outlets each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme.

- SMARTINT2200VS line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression.
- 2200VA power handling capability offers compatibility with networking, telecom and other sensitive electronic devices.
- Large internal batteries support a half load of 1100VA for 19 minutes and a full load of 2200VA for 7 minutes.
- Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V
- Includes 9 UPS supported outlets with 3 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface.
- IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles.
- PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging, and running user-defined script commands.
- Offers simultaneous monitoring by up to 4 directly-connected devices through included USB and DB9 interface ports, or the monitoring by any number of additional servers over IP with included PowerAlert monitoring software.
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
- Emergency Power Off (EPO) interface with cable.
- Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for immediate reboot of connected devices.
- Supports Tripp Lite's WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW).
- Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter.
- Emergency Power Off (EPO) interface with cable.
- Multi-function audible alarms and set of 5 front panel LEDs.
- Network-grade AC surge suppression.
- Attractive gray color scheme.
- UPS battery set ships fully assembled, no time consuming connection of internal batteries by user is necessary.
CertificationCE. FCC Part 15 Category A. ROHS
Colour of productWhite
Dimensions (WxDxH)235 x 305 x 362 mm
Form factorTower
Input connection typeC 20
LED indicatorsYes
Nominal input voltage230 V
Nominal output voltage230 V
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections8 x C13 1 x C19
Output power1600 W
Output power capacity (VA)2200 VA
Package dimensions (WxDxH)375 x 502 x 406 mm
Response time4 ms
Serial ports quantity1
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Surge energy rating480 J
Typical backup time at full load7 min
Typical backup time at half load19 min
EAN0037332120304
ManufacturerTripp-Lite
