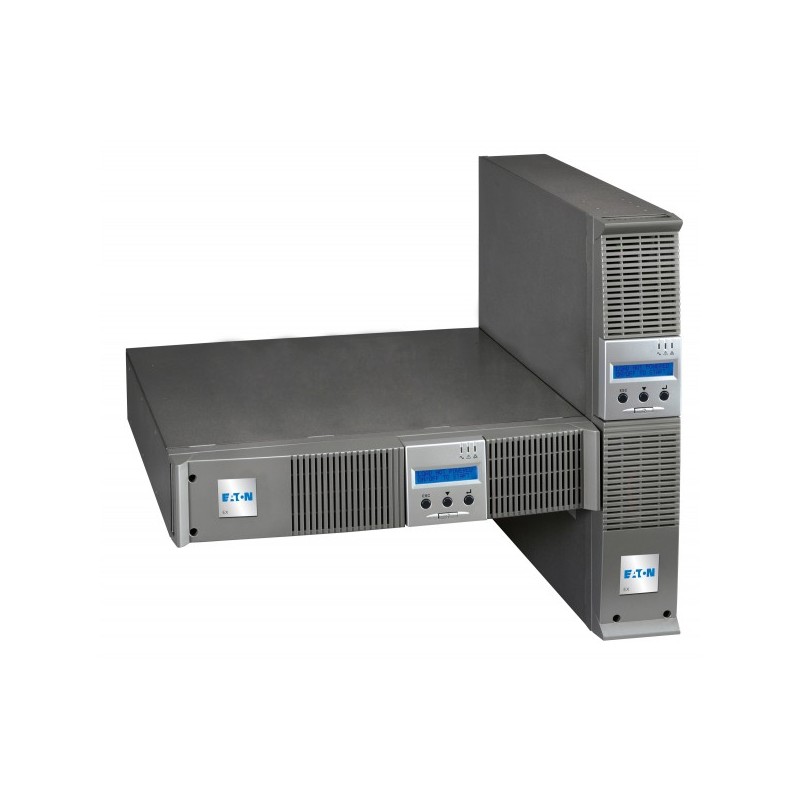

Eaton EX 2200VA 2U Rack/Tower Netpac

Pulsar M RT 2200 VA / 1980 W, Tower/Rack2U, 8 IEC C13 sockets + Network Managed Card (NMC) 2006

More details

68411

Out of Stock

Modular on-line double conversion UPS Maximum availability - Configuration. Double conversion on-line UPS with automatic ... Read More

Need a custom made cabinet? we have it covered

New product

£1,466.06

£1,221.72 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Modular on-line double conversion UPS

Maximum availability
- Configuration. Double conversion on-line UPS with automatic by-pass and power correction factor.
- Continuous power supply. Hot swappable batteries. The HotSwap MBP (Maintenance By-Pass) module allows the UPS to be replaced without interrupting the power supply.
- Redundancy. The ModularEasy kit makes it easy to parallel 2 standard Pulsar M UPSs (N + 1 redundancy).
- Powershare. The Pulsar output sockets are individually controlled to provide load-shedding to maximise the backup time. It also provides remote reboot and sequential start-up as standard.
- Long backup times. 1 to 4 EXB battery units can be added to the Pulsar M. The Pulsar 3000XL has a built-in high speed charger for additional long backup times.

Minimum total cost of ownership
- ModularEasy kit. A simple, low cost solution for uprating by adding a second standard UPS.
- Easy operation. Multilingual display. Access to a wide range of measurements and set-up menus.
- Remote supervision. A wide range of options using the Solution-Pac supplied: SNMP and HTML, (Network Managed Card included with Netpack versions), ModBus/JBus and relay outputs.

Totally flexibility
Pulsar M has unmatched flexibility.
- Format. Pulsar M is available in RT2U convertible rack/tower version (optimised for rack mounting) or RT3U (for tower or shallow rack).
- Connections. With FlexPDU and HotSwap MBP the Pulsar M can be connected by sockets or terminal blocks. They can be installed as required behind, on the side or on top of the unit.
- Compatible with low power factor loads. Pulsar M is rated for 0.9 total power factor (3000VA/2700 W and 2200VA/1980W).
- Interfaces. USB + serial + remote start/stop + slot for optional communications card.

Battery technologySealed Lead Acid (VRLA)
CertificationIEC/EN 62 040-3 (VFI-SS-113), IEC/EN 62 040-1-1, IEC/EN 60 950-1 (RD), IEC/EN 62 040-2 C1 ClassCE, TüV GS, CB report, UL 1778 cUL CSA 22.2
Colour of productGrey
Communication options, slotNMC Minislot 2006 / NMC ModBus/JBus / MC Contacts/Serial
Dimensions (WxDxH)86 x 440 x 640 mm
Form factorRack 2U / Tower
I/O ports1 USB 1 RS232 1 mini terminal block
Input connection type1 IEC C20 (16A)
Noise level45 dB
Nominal input voltage100/120/160/184 - 284 V
Operating temperature range (T-T)0 - 40 °C
Output connections8 IEC C13 (10A) 1 IEC C19 (16A)
Output power1980 W
Output power capacity (VA)2200 VA
Power supply input frequency40-70 Hz
Serial ports quantity1
Source data-sheetIcecat.biz
Typical backup time at half load17 min
Weight31000 g
EAN3553340684111
ManufacturerEaton
