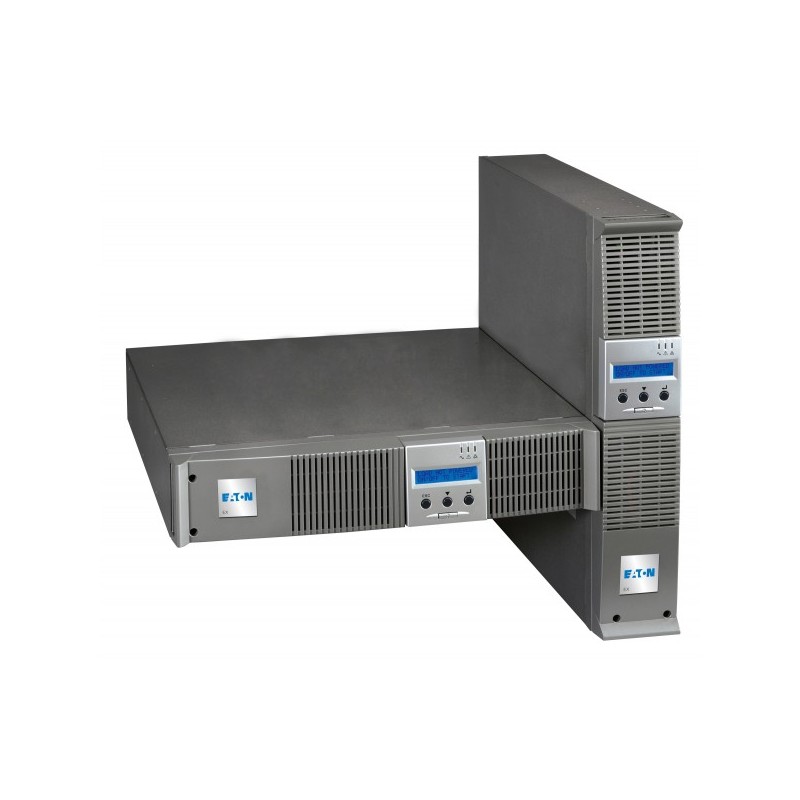

The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.

- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options

- Available in Tower or Rack/Tower convertible versions (including short-depth versions)

- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption

- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up

- Multilingual LCD display for easy operation, access to measurements and customized set-up

- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)

AC outlet types	C13 coupler
AC outlets quantity	6 AC outlet(s)
Battery technology	Sealed Lead Acid (VRLA)
Certification	CE, TüV GS, CB report, UL 1778 cUL CSA 22.2
Colour of product	Grey
Depth	483 mm
Dimensions (W x D x H)	438.1 x 482.6 x 87.9 mm (17.25 x 19 x 3.46 ")
Dimensions (WxDxH)	438 x 483 x 86.5 mm
Form factor	Rackmount/Tower
Height	86.5 mm
Input connection type	C14
Input operation voltage (max)	284 V
Input operation voltage (min)	100 V
LED indicators	Yes
Noise level	45 dB
Nominal input voltage	230 V
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output operation voltage (max)	250 V
Output operation voltage (min)	200 V
Output power	1350 W
Output power capacity (VA)	1500 VA
Power plug	C14 coupler
Power supply input frequency	40/70 Hz
Rack capacity	2U
RS-232 ports	1
Safety	IEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD)
Serial ports quantity	1
Source data-sheet	Icecat.biz
Typical backup time at full load	3 min
Typical backup time at half load	10 min
USB 2.0 ports quantity	1
Weight	20500 g
Width	438 mm
