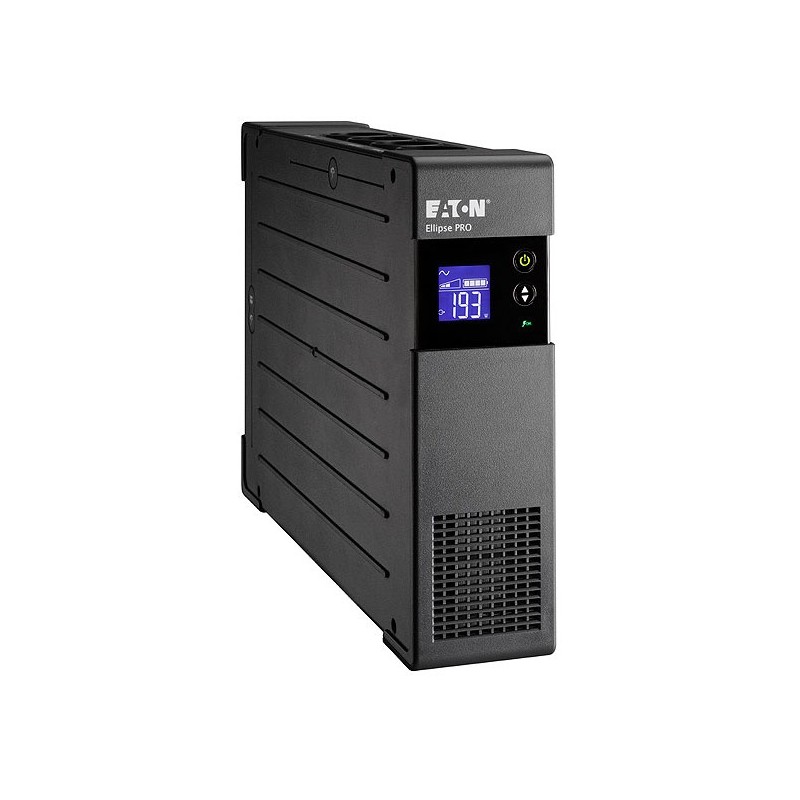

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.



- LCD display for real-time status and measurements.

- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).

- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.

- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.

- Up to 8 outlets to connect your PC & peripherals.

- Convenient extra-flat design for easy installation in any office environment.

- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.

- Protects data connections such as Ethernet, internet and telephone lines.
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Battery technologySealed Lead Acid (VRLA)
Colour of productBlack
Depth390 mm
DisplayLCD
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount/Tower
Height275 mm
Input operation voltage (max)285 V
Input operation voltage (min)165 V
LED indicatorsYes
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power750 W
Output power capacity (VA)1200 VA
Power plugC14 coupler
Power supply input frequency50/60 Hz
Rack capacity2U
Rack mountingYes
SafetyIEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Source data-sheetIcecat.biz
Surge protection featuresFax,Modem,Network,Telephone
Typical backup time at half load9 min
USB 2.0 ports quantity1
Weight9900 g
Width82 mm

Similar products

  • Eaton Ellipse PRO 650 IEC
    Eaton Ellipse PRO 650 IEC
  • Eaton Ellipse PRO 850 IEC
    Eaton Ellipse PRO 850 IEC
  • Eaton Ellipse PRO 1600 IEC
    Eaton Ellipse PRO 1600 IEC

Eaton Ellipse PRO 1200 IEC

Ellipse PRO 1200 IEC

ELP1200IEC

In Stock

£343.99
£286.66 Ex VAT.
