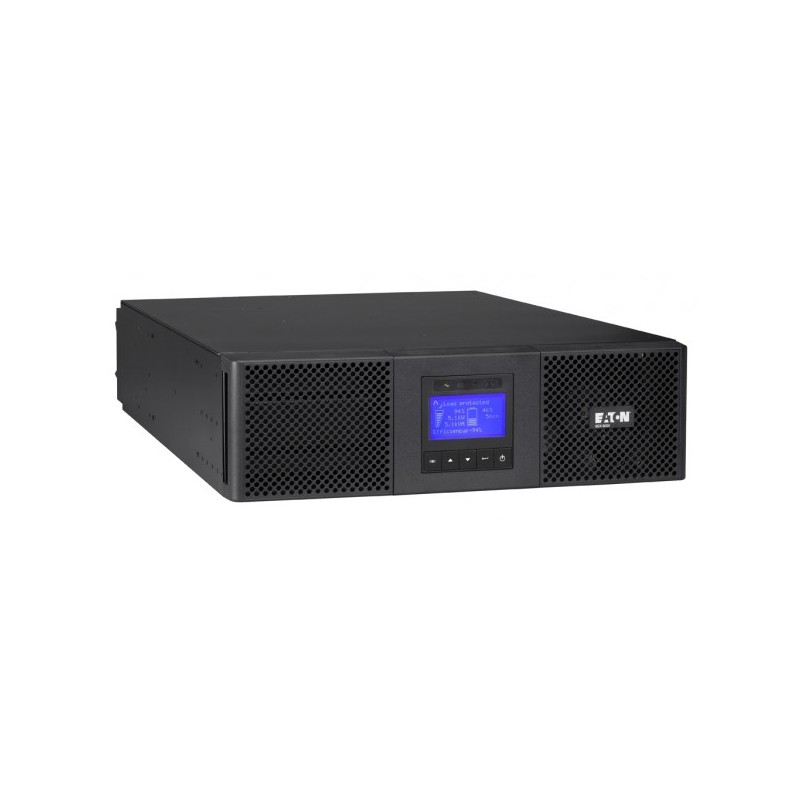

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.

AC outlet types	C13 coupler,C19 coupler,Terminal
AC outlets quantity	11 AC outlet(s)
Colour of product	Black
Crest factor	3:1
Depth	685 mm
Display	LCD
Efficiency	98 %
Energy Star certified	Yes
Form factor	Rackmount/Tower
Height	440 mm
Input current THD	5 %
Input operation voltage (max)	276 V
Input operation voltage (min)	100 V
Maximum current	90 A
Noise level	45 dB
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output power	5400 W
Output power capacity (VA)	6000 VA
Output voltage THD	2 %
Power plug	Terminal
Power supply input frequency	40/70 Hz
Rack capacity	3U
Rack mounting	3U
RS-232 ports	1
Safety	EN 62040-1, UL 1778, CSA 22.2
Typical backup time at half load	11 min
USB 2.0 ports quantity	1
Weight	48000 g
Width	130 mm
