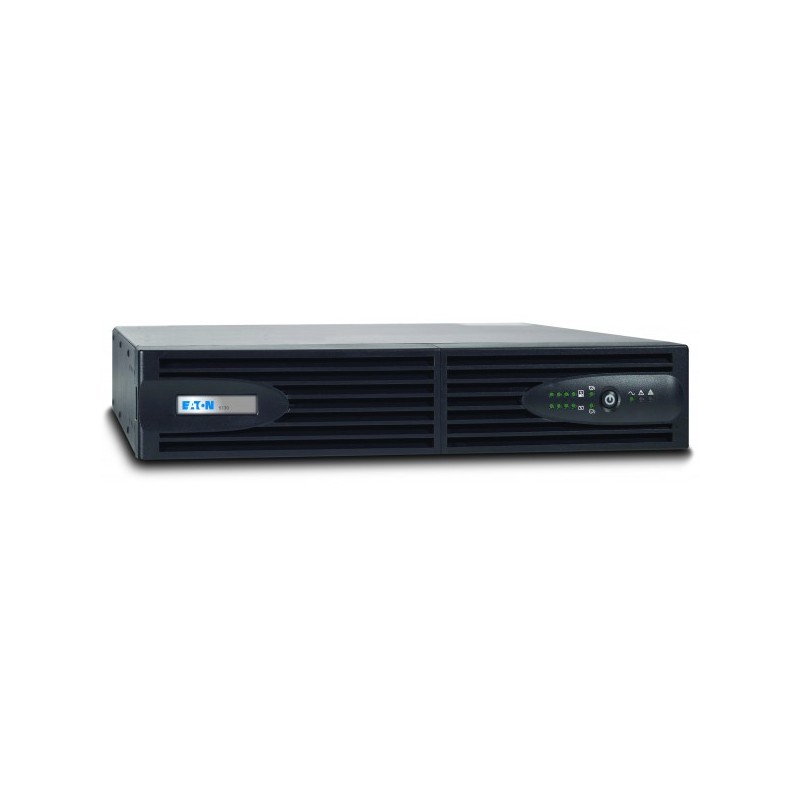

Eaton 5130 2250VA UPS
  • Eaton 5130 2250VA UPS
  • Eaton 5130 2250VA UPS
The Eaton 5130 Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a two-in-one rack/tower form factor, the 5130 UPS packs up to three kVA of power into only 2U of rack space. The 5130 UPS provides additional battery runtime with 2U extended battery modules. To enhance compatibility with modern IT loads, the 5130 UPS is designed with a 0.9 power factor.



- Conserves valuable rack space with 2U form factor that includes internal batteries

- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor

- Maximizes availability with extended battery runtime options, hot-swappable batteries and optional maintenance bypass

- Extends battery runtime for critical devices with load segments

- Offers choice of rackmount or tower installation with two-in-one form factor (4-post rail kit and tower pedestals included)

- Delivers control and visibility with free power management software featuring an intuitive user interface
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Bundled softwareEaton
CertificationIEC/EN 62040-1-1, UL 1778;
Colour of productBlack
Crest factor3:1
Depth634 mm
Dimensions (WxDxH)441 x 634 x 86 mm
Efficiency94 %
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount/Tower
Height86 mm
Hot-swap batteryYes
Input connection typeIEC C20-16A
Input operation voltage (max)294 V
Input operation voltage (min)160 V
LED indicatorsYes
Maximum current16 A
Noise level45 dB
Nominal input voltage230, 160 - 294 V
Nominal output voltage184/265 V
Operating relative humidity (H-H)20 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(8) IEC-C13-10A; (1) IEC-C19-16A
Output operation voltage (max)265 V
Output operation voltage (min)184 V
Output power2250 W
Output power capacity (VA)2500 VA
Power factor0.9
Power plugC20 coupler
Power supply input frequency50/60 Hz
Rack capacity2U
Response time4 ms
SafetyIEC/EN 62040-1, UL 1778IEC/EN 62040-1, UL 1778
Serial ports quantity1
Source data-sheetIcecat.biz
Storage temperature (T-T)-15 - 50 °C
Storage temperature range (T-T)-15 - 50 °C
Typical backup time at full load3 min
Typical backup time at half load17 min
USB 2.0 ports quantity1
Weight33800 g
Width441 mm
