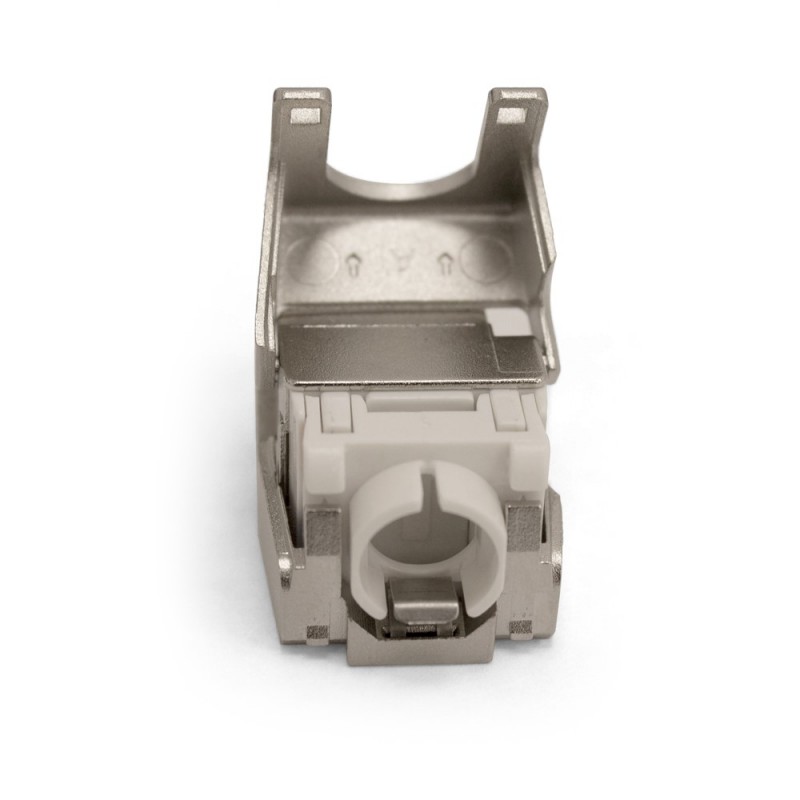

Connectix Cat6A Keystone Modules have been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

When used with Connectix Cat6a Cable, the Category 6A Keystone Modules provide an outstanding transmission medium free from the problems of alien crosstalk.

The tool-less and snap-to-fit module ensures a quick and easy to terminate installation, and the standard Keystone fitting allows the use of the same module in patch panels, wall outlets and a variety of other applications.

Features:

Cat6A performance
Suitable for 10-Gigabit Ethernet
Fully shielded die-cast design
No special tooling required
Industry standard Keystone fitting
Tool-less snap-to-fit module

Specification:

Mounting hole size - 19.3 x 14.7mm
Recommended back-box depth - 40mm
Width - 18.0mm
Depth - 44.2mm
Height - 22.8mm
Copper conductor diameter - 24 AWG
Life (operations) - Min. 750
Shielding housing - Zinc die-cast
Colour code - T568B
Conforms to - ANSI/TIA 568-C Category 6A IEEE802.3an 10-Gigabit Ethernet

Faceplate Included	No
Module Size	Keystone Jack
Shielded	Yes
Specification	Cat6a
Termination	Tool-less

Cat 6a FTP Tool-Less Keystone

Download (620.17k)

Termination Instructions

Download (538.25k)

Neil C - 16/02/2023

Good quality, secure closure and labelled CAT6A on the front.

Steve B - 03/12/2022

A mixed result really, the tool-less aspect is good in principle but not all the wires were being punched down between the blades which has taken far longer than I hoped. About 11 have not worked properly and needed additional tooling to make good out of the 24 I purchased. For reference I used cat 6a SFTP cable also purchased through Cable Monkey.

Ash B - 30/11/2019

A whole lot easier to terminate than the traditional punch down terminals
