Images are for illustrative purposes only.

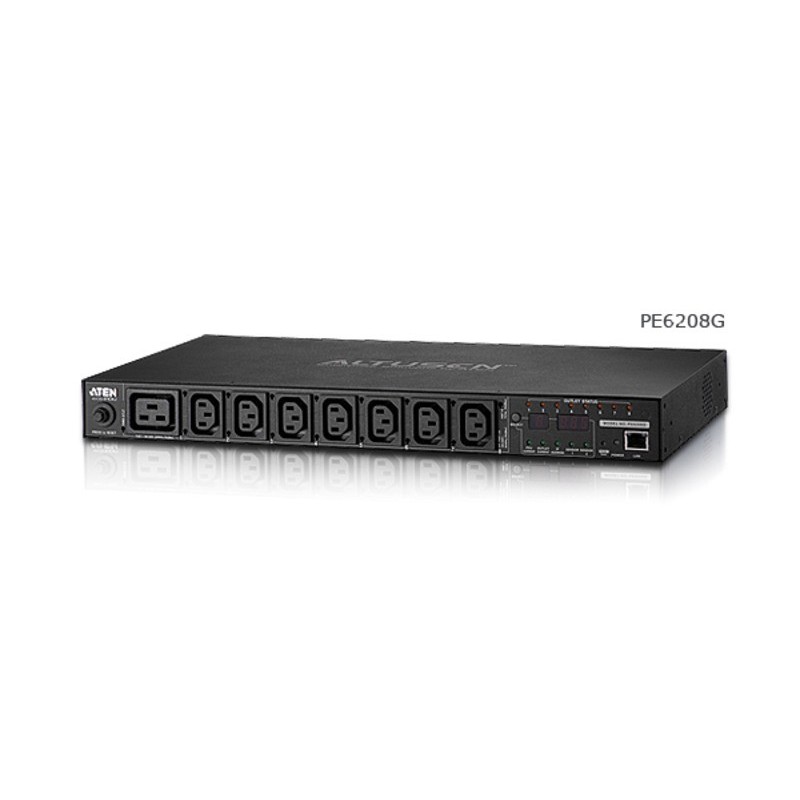

Aten PE6208 7 x IEC320 C13 + 1 x IEC320 C19 Eco PDU

Aten Green Energy Eco PDU with 7 x IEC320 C13 + 1 x IEC320 C19 - IEC 320 C20 Input

More details

PE6208G

Out of Stock

Features Power Distribution - Space saving 1U rack mount design with rear mounting - IEC or NEMA outlet models - 3 ... Read More

Browse our range of high quality PDUs

New product

£545.79

£454.83 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

Features



Power Distribution

- Space saving 1U rack mount design with rear mounting

- IEC or NEMA outlet models

- 3 digit 7-segment front panel LED shows Current / IP Address

- Remote users can monitor outlet status via web pages on their browsers

- Safe shutdown support

- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker



Remote Access

- Remote power control via TCP/IP and a built in 10/100 Ethernet port

- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping

- eco PDU Power Management software – eco Sensors

- Supports SNMP Manager V3



Operation

- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets

- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order

- Easy setup and operation via a browser-based user interface

- Multibrowser support (IE, Firefox, Chrome, Safari)

- RTC support to keep the timer running during times of no power.

- Supports up to 8 user and 1 administrator accounts



Management

- Power status measurement at the PDU or Outlet level

- LED indicators for current and IP address at the PDU device level

- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level

- Current and voltage threshold setting

- Naming support for outlets

- User outlet access assignment on an outlet-by-outlet basis.

- Event logging and syslog support

- Upgradeable firmware

- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian



Security

- Power status measurement at the PDU or

- Two-level password security

- Strong security features include password protection and advanced encryption technologies – 128 bit SSL

- Remote authentication support: RADIUS



eco Sensors Energy Management Software

- Automatic discovery of all PE devices within the same intranet

- Remote real-time power measurement and monitoring

- Remote real-time power outlet management*

- Remote real-time environment sensor monitoring

- Plotting/Monitoring of all PE devices

- Exceed threshold alert through SMTP and Syslog

- Power Analysis Report



Package Contents



- 1x PE6208 Power Distribution Unit

- 1x Power Cord

- 1x Rack Mount Kit

- 1x Software CD

- 1x User Instructions
AC outlets quantity8 AC outlet(s)
Colour of productBlack
Dimensions (WxDxH)219.3 x 432.4 x 44 mm
Ethernet LAN (RJ-45) ports1
Input frequency50/60 Hz
LED indicatorsLAN,Link,Power,Status
MaterialMetal
Maximum current16 A
MonitoringCurrent
MountingHorizontal
Nominal input voltage100-240 V
Nominal output voltage100-240 V
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
PDU typesMonitored
Power plugC20 coupler
Rack mounting1u
RoHS complianceYes
Storage temperature (T-T)-20 - 60 °C
Weight2790 g
EAN4710423777651
ManufacturerAten
