Aten CS84U

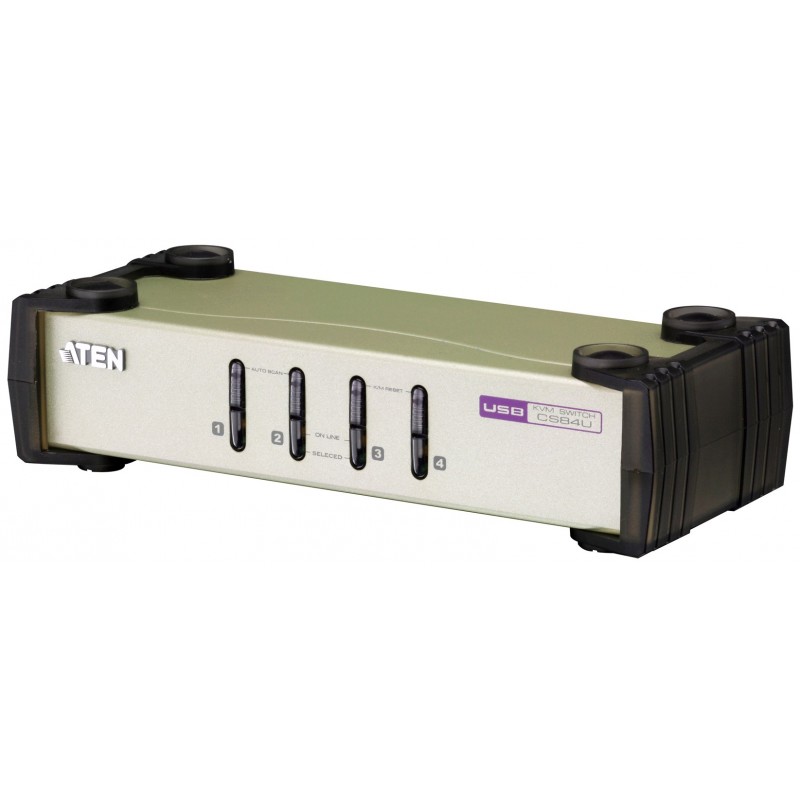

4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)

More details

CS84U

Out of Stock

Features - One PS/2-USB VGA console controls four VGA interface computers. - Dual Interface - supports computers with ... Read More

Browse our range of high quality PDUs

New product

£112.01

£93.34 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features



- One PS/2-USB VGA console controls four VGA interface computers.

- Dual Interface - supports computers with PS/2 or USB keyboards and mice

- Computer selection via front panel pushbuttons, hotkeys, and mouse

- Multiplatform support - Windows, Linux, Mac, and Sun

- Superior video quality - 2048 x 1536; DDC2B

- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports

- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

- Complete keyboard emulation for error-free booting

- Mac/Sun keyboard support and emulation*

- Multilingual keyboard mapping - supports English, Japanese, and French keyboards

- Gaming keyboard support

- Auto Scan Mode for monitoring all computers

- Firmware upgradable

- Non-powered



* 1. PC keyboard combinations emulate Mac/Sun keyboards

* 2. Mac/Sun keyboard work only with their own computers



Package Contents



- 1x CS84U PS/2-USB KVM Switch

- 2x 2L-5301UP PS/2-USB KVM Cables

- 2x 2L-5302UP PS/2-USB KVM Cables

- 1x User Instructions
Audio connectionsNo
Cables includedKVM
CertificationCN ZL 99213861.2, CN ZL 01260527.1, CN ZL 02301212.9US 6564275, US 6464197, TW 174875, TW 081926 Windows7
Colour of productGrey
Compatible operating systemsWindows, Linux, Mac, Sun
Connectivity technologyWired
DC-in jackYes
Depth210 mm
Display resolution at frequency2048 x 1536 @ 60 Hz
Height55 mm
Keyboard port typeUSB, PS/2
LED indicatorsYes
MaterialMetal
Maximum resolution2048 x 1536 pixels
Mouse port typeUSB, PS/2
Number of computers controlled4
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Ports quantity4
Power consumption (typical)1.2 W
Power requirements5VDC
PS/2 ports quantity2
Quick installation guideYes
RoHS complianceYes
Scan interval20 s
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Technical featuresDDC2B
USB 2.0 ports quantity2
Video port typeVGA
Weight770 g
Width87 mm
EAN0672792002052
ManufacturerAten
