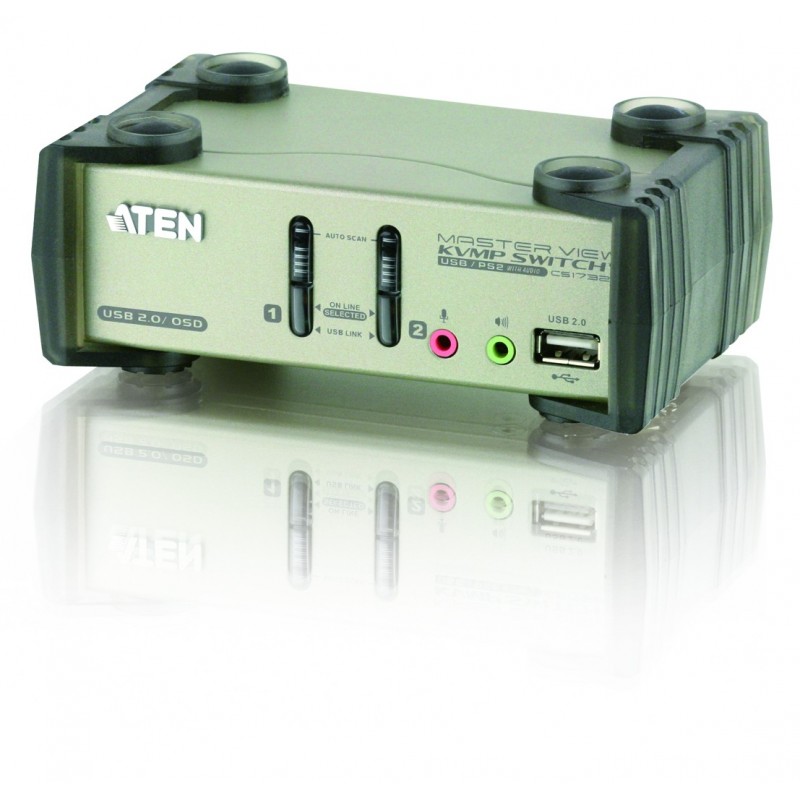

Aten CS1732B

2-Port USB 2.0 KVMP™ Switch with OSD

More details

CS1732B

In Stock

Features - 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio - One console controls two computers and ... Read More

Browse our range of high quality PDUs

New product

£83.34

£69.45 tax excl.

Free Economy Delivery - on all orders over £50
  • More info

  • Details

  • Spec Sheet

Features



- 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio

- One console controls two computers and two additional USB devices

- 2-port USB 2.0 hub built in

- USB 2.0 compliant

- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations

- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems

- Console audio ports on front panel for easy access - ideal for IP phone users

- Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse

- Independent switching of KVM, USB, and Audio focus

- Superior video quality; 2048 x 1536; DDC2B

- Supports widescreen resolutions

- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse

- Multiplatform support - Windows , Mac, and Sun

- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Complete keyboard emulation for error-free booting

- Sun/Mac keyboard support and emulation*

- Auto Scan Mode for monitoring all computers

- LED Display for easy status monitoring

- Easy installation no software required

- Firmware upgradeable



* 1.PC keyboard combinations emulate Sun/Mac keyboards

* 2.Sun/Mac keyboards only work with their own computers



Package Contents



- 1x 2-Port USB 2.0 KVMP™ Switch

- 2x 2L-5301U USB KVM Cables

- 1x UC20KMZ-A-11 USB-to-PS/2 Converter

- 2x OSD/Hotkey Stickers

- 1x Firmware Upgrade Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x User Instructions
Colour of productGrey
Compatible operating systems-Windows 2000/XP/Vista -Linux -Mac -Sun
Dimensions (WxDxH)87 x 140 x 55 mm
DisplayLED
Headphone outputs2
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Ports quantity2
Power consumption (typical)3.1 W
Power supply type1 x DC Jack
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 80 %
Storage relative humidity range0 - 80 %
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Video port typeVGA
Weight550 g
EAN0672792112249
ManufacturerAten
