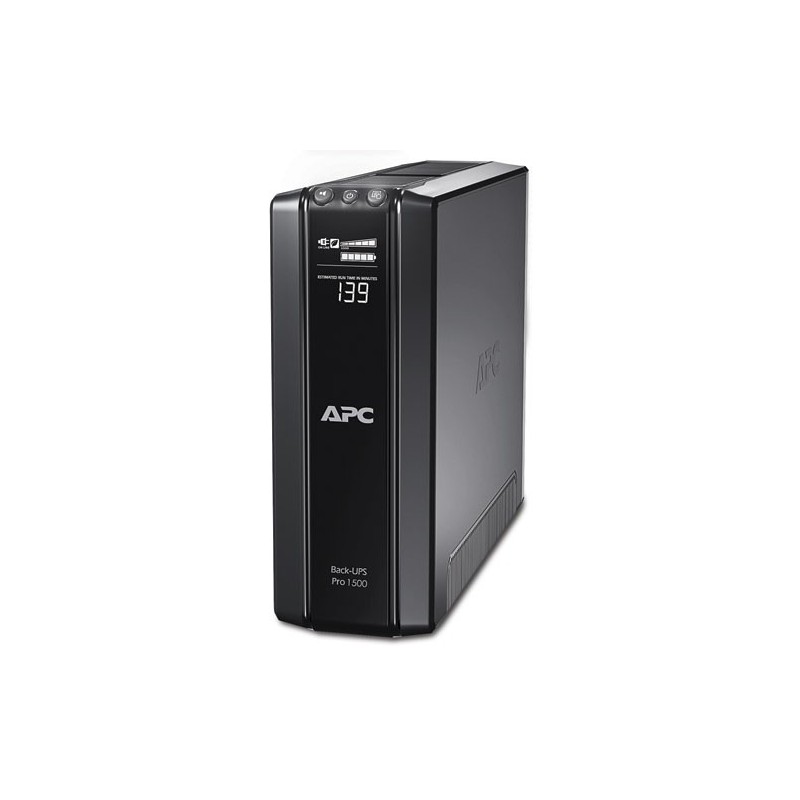

APC BR1500GI Power-Saving Back-UPS Pro 1500, 230V
  • APC BR1500GI Power-Saving Back-UPS Pro 1500, 230V
  • APC BR1500GI Power-Saving Back-UPS Pro 1500, 230V
Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.



Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance



Power-saving outlets

Automatically cuts power to idle equipment to conserve electricity.



Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.



Extendable Run Time

Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.



Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment



Cold-start capable

Provides temporary battery power when the utility power is out.



Serial Connectivity

Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Dataline Surge Protection

Provides protection of connected equipment from power surges on the data lines.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
AC outlet typesC13 coupler
AC outlets quantity10 AC outlet(s)
Battery capacity187 VAh
Battery recharge time8 h
Battery technologySealed Lead Acid (VRLA)
Bundled softwarePowerChute Personal Edition
Cable length1.83 m
Cables includedPhone (RJ-11),USB cable
CertificationA-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Colour of productBlack
Crest factor3:1
Depth380 mm
DisplayLCD
Efficiency98.9 %
Energy Star certifiedYes
Height301 mm
Hot-swap batteryYes
Input connection typeIEC-320 C14
Input operation voltage (max)300 V
Input operation voltage (min)156 V
ManualYes
Noise level45 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 9000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections5x IEC 320 C13 (Battery Backup) 5x IEC 320 C13 (Surge Protection)
Output power865 W
Output power capacity (VA)1500 VA
Package height387 mm
Package weight14300 g
Package width238 mm
Power supply input frequency50/60 Hz
Quantity per pallet20 pc(s)
Replacement battery cartridgeAPCRBC124
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 40 °C
Storage temperature range (T-T)-15 - 40 °C
Surge energy rating441 J
Surge protection featuresDigital Subscriber Line (DSL),Fax,Modem,Network,Telephone
Typical backup time at full load3.7 min
Typical backup time at half load12.4 min
USB portYes
WaveformSine
Weight12700 g
Width112 mm
